Hydro steering-oil pipes for BMW 5 Series E28 528e (1987)

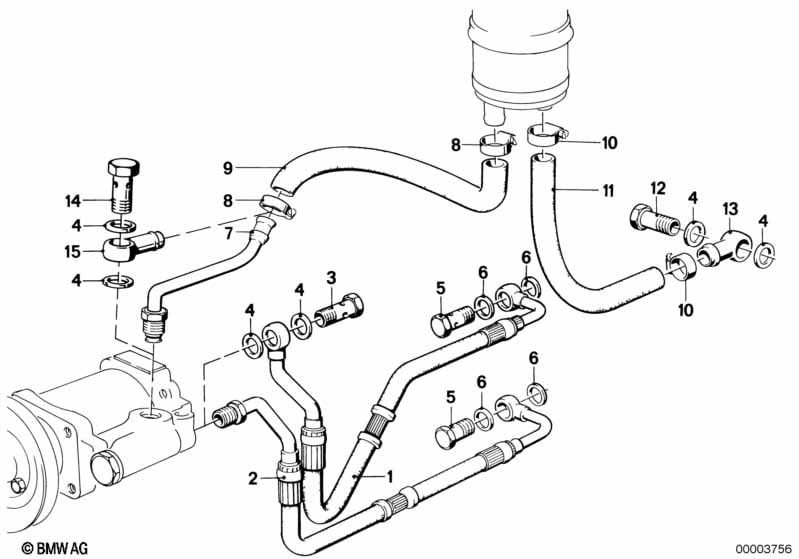

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy | 1 | 09/1983 | 32411133171 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A14X20-CUSN | X | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A16X22-CUSN | X | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A18X22 | X | 32411125142 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | A14X20-ALMG | X | 32411129986 | $0.15 | Shop at ECS Tuning | ||||
| 05 | Hollow bolt | M14X1,5X26 | X | 32416852469 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | A14X20-CUSN | X | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X20-ALMG | X | 32411129986 | $0.15 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Hose | 16X22MM | X | 32411131545 | $45.93 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 11 | Hose | 12X18MM | X | 32411131524 | $35.95 | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 13 | Connector | 1 | 32411125170 | $9.10 | Shop at ECS Tuning | |||||
| 14 | Hollow bolt | M18X32 | 1 | 04/1983 | 32411117183 | $7.53 | ENDED | Shop at ECS Tuning | ||
| 15 | Connector | 1 | 32411127343 | $32.71 | ENDED | Shop at ECS Tuning | ||||
| 15 | Connector | 1 | 32411128765 | $39.81 | Shop at ECS Tuning | |||||
| 15 | Connector | 1 | 04/1983 | 32411119782 | $10.20 | ENDED | Shop at ECS Tuning | |||
| 15 | Connector | 1 | 09/1983 | 32411127343 | $32.71 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
