Hydro steering-vane pump for BMW 5 Series E28 520i (1982)

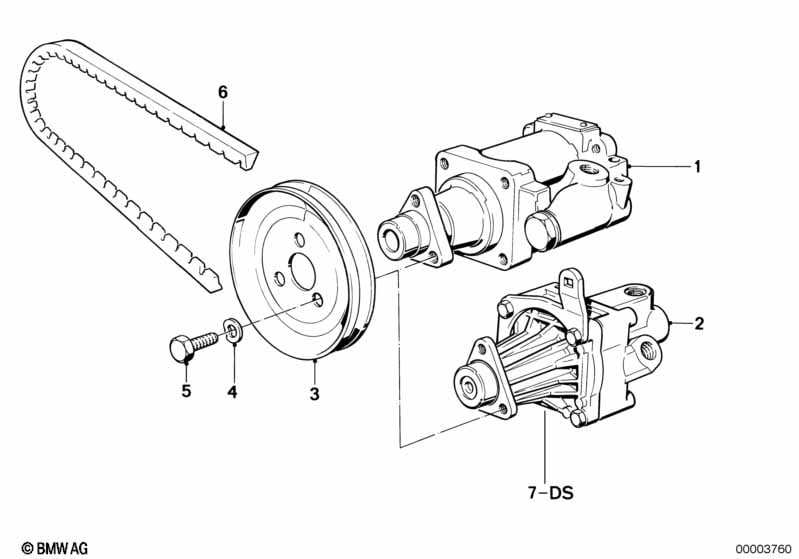

This Hydro steering-vane pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vane pump | ZF | 1 | 10/1983 | 32411127636 | $523.61 | ENDED | Shop at ECS Tuning | ||
| 01 | Vane pump | ZF | 1 | 10/1983 | 32411127636 | $523.61 | ENDED | Shop at ECS Tuning | ||
| 03 | Pulley | 1 | 10/1983 | 32411272448 | $22.35 | Shop at ECS Tuning | ||||
| 03 | Pulley | 1 | 10/1983 | 32411272448 | $22.35 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X12-Z3-1 | 3 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||

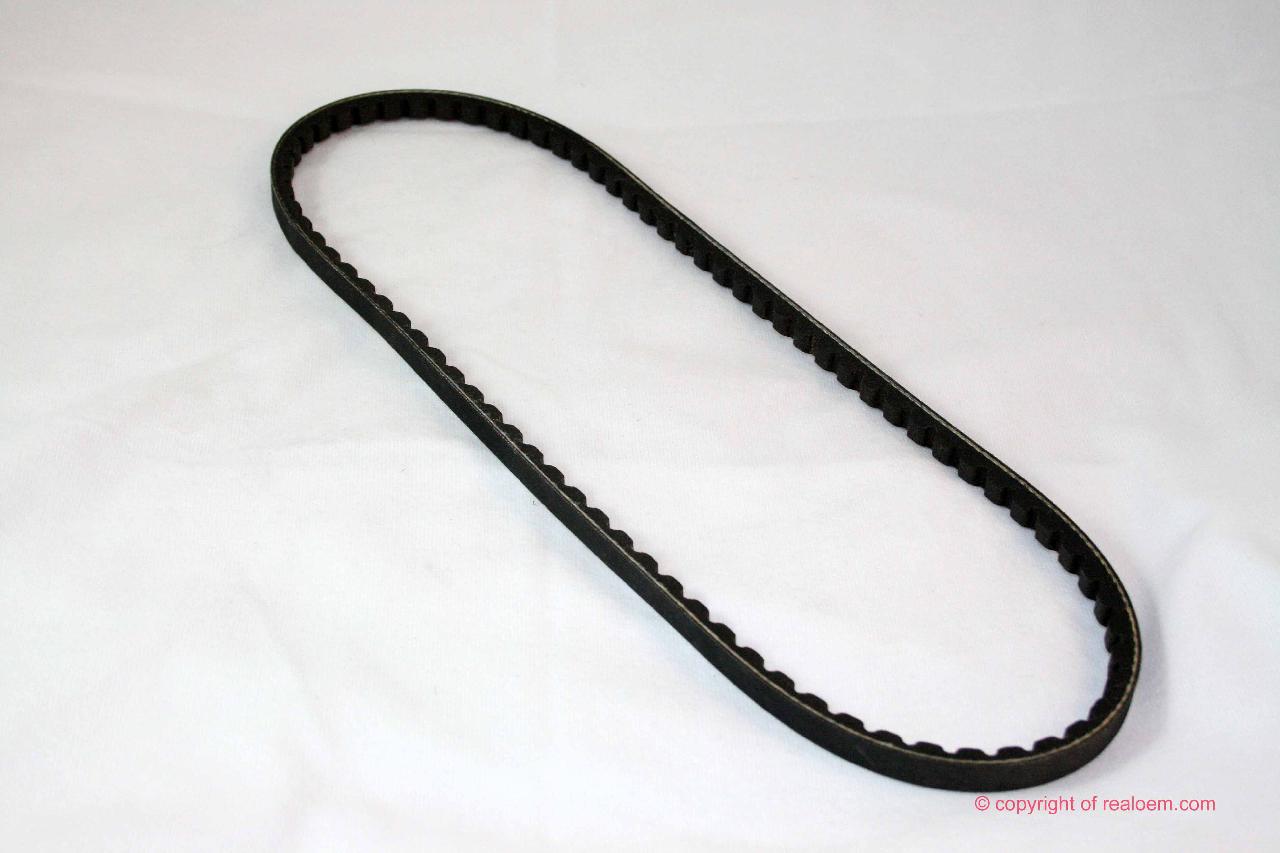

| 06 | Fan belt | 9,5X825 | 1 | 32421706825 | $14.24 | ENDED | Shop at ECS Tuning | |||
| 07 | Gasket set vane pump | VICKERS | 1 | 32411133023 | $37.04 | Shop at ECS Tuning | ||||
| 07 | Gasket set vane pump | ZF | 1 | 32411135880 | $41.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Hydro steering-vane pump?
- This technical diagram illustrates the Hydro steering-vane pump within the Steering group for the 5 Series E28 520i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Vane pump (Part #32411127636).
- Which models use the hardware listed in this Hydro steering-vane pump?
- The hardware and components featured in the Hydro steering-vane pump are specific to the 5 Series E28 520i produced during 1982. These technical specifications ensure that parts like the Vane pump (32411127636) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-vane pump assembly?
- Each item in the Hydro steering-vane pump corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Vane pump by locating its position on the schematic, which then links to the official BMW part number 32411127636 for the Steering section.
