Hydro steering-oil pipes for BMW 6 Series E24 628CSi (1987)

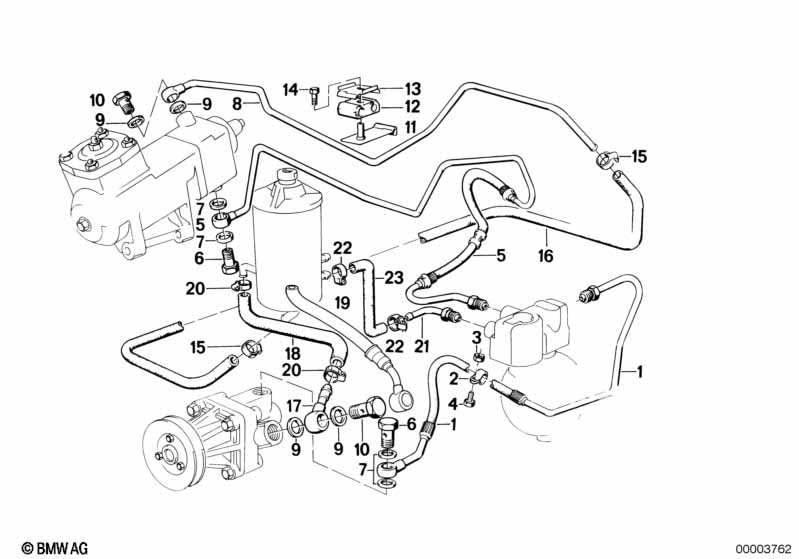

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy | 1 | 04/1984 | 32411134806 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | D=10/6,4 | 1 | 04/1984 | 12141305028 | $1.58 | Shop at ECS Tuning | |||
| 03 | Self-locking hex nut | M6-10 ZN | X | 04/1984 | 03/1989 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | |
| 03 | Self-locking hex nut | M6 ZNNIV SI | X | 04/1984 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 04/1984 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 05 | Pressure hose assy | 1 | 04/1984 | 06/1987 | 32411133175 | ENDED | Shop at ECS Tuning | |||
| 06 | Hollow bolt | M14X1,5X26 | 2 | 04/1984 | 32416852469 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A14X20-CUSN | 4 | 04/1984 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 07 | Gasket ring | A14X20-ALMG | 4 | 04/1984 | 32411129986 | $0.15 | Shop at ECS Tuning | |||
| 08 | Pipe | 1 | 04/1984 | 32411128269 | ENDED | Shop at ECS Tuning | ||||
| 08 | Pipe | 1 | 04/1984 | 32411129981 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A16X22-CUSN | 4 | 04/1984 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 10 | Hollow bolt | M16X28 | 2 | 04/1984 | 32416852470 | Shop at ECS Tuning | ||||
| 11 | Bracket | 2 | 04/1984 | 32411125598 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 2 | 04/1984 | 32411125162 | Shop at ECS Tuning | |||||
| 13 | Support pressure hose assy | 2 | 04/1984 | 32411125658 | Shop at ECS Tuning | |||||
| 14 | Self tapping screw | 2 | 04/1984 | 34321119239 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L15-19 | 4 | 04/1984 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 16 | Hose | 12X18MM | X | 04/1984 | 32411131524 | $35.95 | Shop at ECS Tuning | |||
| 17 | Connector | 1 | 04/1984 | 05/1988 | 32411128765 | $39.81 | Shop at ECS Tuning | |||
| 18 | Hose | 16X22MM | X | 04/1984 | 05/1988 | 32411131545 | $45.93 | Shop at ECS Tuning | ||
| 20 | Hose clamp | L18-24 | 2 | 04/1984 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 21 | Pipe | 1 | 04/1984 | 34321121527 | $14.42 | ENDED | Shop at ECS Tuning | |||
| 22 | Hose clamp | L12-15 | 2 | 04/1984 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 23 | Hose | 6X12MM | X | 04/1984 | 34321119071 | $17.55 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
