Oil carrier / Single parts for BMW 6 Series E24 633CSi (1984)

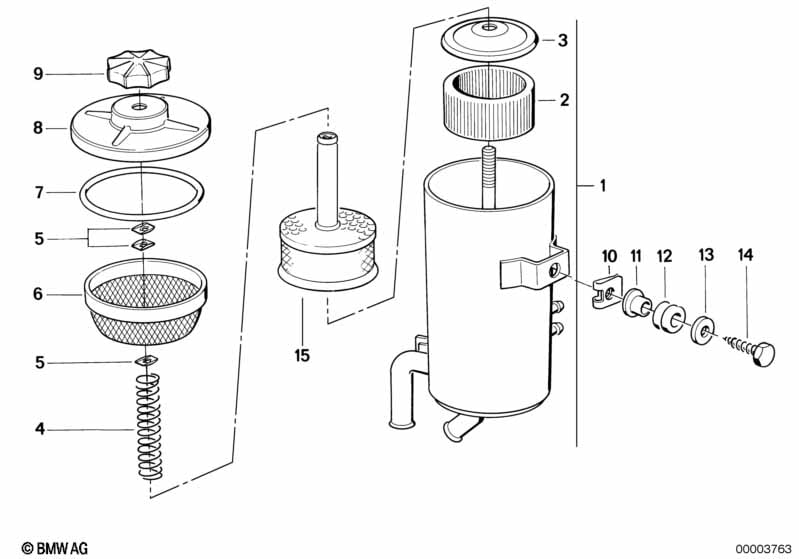

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BENTELER | |||||||||
| 01 | Oil carrier | 1 | 09/1982 | 32411128428 | $1250.64 | ENDED | Shop at ECS Tuning | |||
| 02 | Filter cartridge | 1 | 09/1982 | 32411128919 | $18.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 09/1982 | 32411128920 | ENDED | Shop at ECS Tuning | ||||
| 04 | Compression spring | 1 | 09/1982 | 32411128921 | $1.20 | ENDED | Shop at ECS Tuning | |||
| 05 | Clamp | 3 | 09/1982 | 32411128924 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 06 | Oil strainer | 1 | 09/1982 | 32411128928 | $31.58 | Shop at ECS Tuning | ||||
| 07 | Gasket | 1 | 09/1982 | 32411128929 | $5.07 | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 09/1982 | 32411128922 | $15.47 | ENDED | Shop at ECS Tuning | |||
| 09 | Cap | 1 | 09/1982 | 32411128923 | $7.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer bush | 12MM | 2 | 09/1982 | 37211119062 | $3.37 | Shop at ECS Tuning | |||
| 12 | Rubber grommet | 3 | 09/1982 | 37211119643 | $1.45 | Shop at ECS Tuning | ||||
| 13 | Washer | 6,4X25X1,5 | 2 | 09/1982 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 14 | Hex bolt | M6X22-8.8-ZNS3 | 2 | 09/1982 | 07119904505 | $0.38 | Shop at ECS Tuning | |||
| 15 | Oil strainer | 1 | 09/1982 | 32411136300 | $110.07 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Oil carrier / Single parts?
- This technical diagram illustrates the Oil carrier / Single parts within the Steering group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Oil carrier (Part #32411128428).
- Which models use the hardware listed in this Oil carrier / Single parts?
- The hardware and components featured in the Oil carrier / Single parts are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Oil carrier (32411128428) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil carrier / Single parts assembly?
- Each item in the Oil carrier / Single parts corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Oil carrier by locating its position on the schematic, which then links to the official BMW part number 32411128428 for the Steering section.
