Hydro steering-vane pump/bearing support for BMW 5 Series E28 M5 (1987)

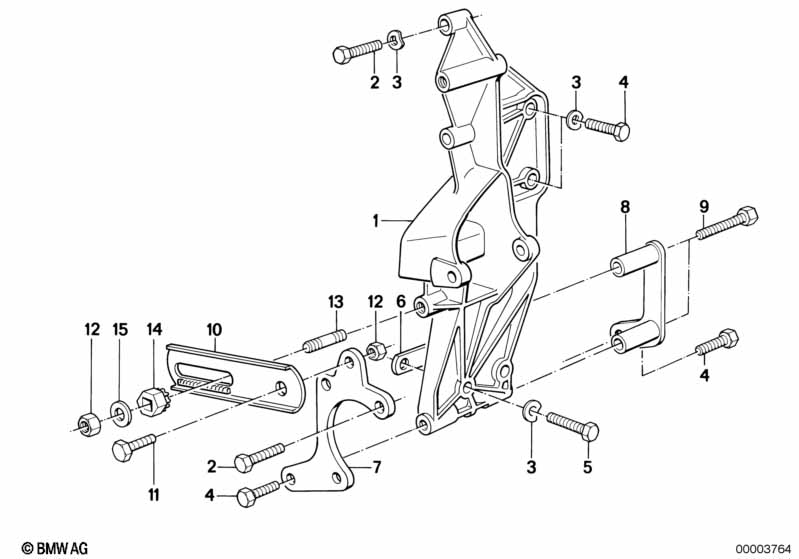

This Hydro steering-vane pump/bearing support technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 09/1985 | 12311708343 | $100.63 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X35 | 6 | 04/1984 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| 03 | Wave washer | 8,4X15-ZNS3 | 5 | 04/1984 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 04/1984 | 07119904040 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X40-ZNNIV SI | 2 | 04/1984 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 06 | Spacer plate | 0,50MM | X | 04/1984 | 12311278161 | $0.20 | ENDED | Shop at ECS Tuning | ||
| 06 | Spacer plate | 0,80MM | X | 04/1984 | 12311278162 | $0.20 | Shop at ECS Tuning | |||
| 06 | Spacer plate | 1,00MM | X | 04/1984 | 12311278163 | $0.20 | Shop at ECS Tuning | |||
| 08 | Supporting plate | 1 | 04/1984 | 32411278179 | $13.93 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X55-8.8 | 2 | 04/1984 | 07119902957 | $5.27 | Shop at ECS Tuning | |||
| 10 | Adjusting bar | 1 | 04/1984 | 12311719992 | $5.93 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 1 | 04/1984 | 07119903039 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 04/1984 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 13 | Stud bolt | M8X40 | 1 | 04/1984 | 07129908139 | $0.88 | Shop at ECS Tuning | |||
| 14 | Idler | 1 | 04/1984 | 12317677914 | $4.26 | Shop at ECS Tuning | ||||
| 15 | Washer | 8,4X16X1,6-ZNNV | 1 | 04/1984 | 07119907030 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M5 Hydro steering-vane pump/bearing support?
- This technical diagram illustrates the Hydro steering-vane pump/bearing support within the Steering group for the 5 Series E28 M5 produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #12311708343).
- Which models use the hardware listed in this Hydro steering-vane pump/bearing support?
- The hardware and components featured in the Hydro steering-vane pump/bearing support are specific to the 5 Series E28 M5 produced during 1987. These technical specifications ensure that parts like the Supporting bracket (12311708343) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-vane pump/bearing support assembly?
- Each item in the Hydro steering-vane pump/bearing support corresponds to the numbered list below the illustration. For the 5 Series E28 M5, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 12311708343 for the Steering section.
