Hydro steering-oil pipes for BMW 3 Series E30 325ix (1991)

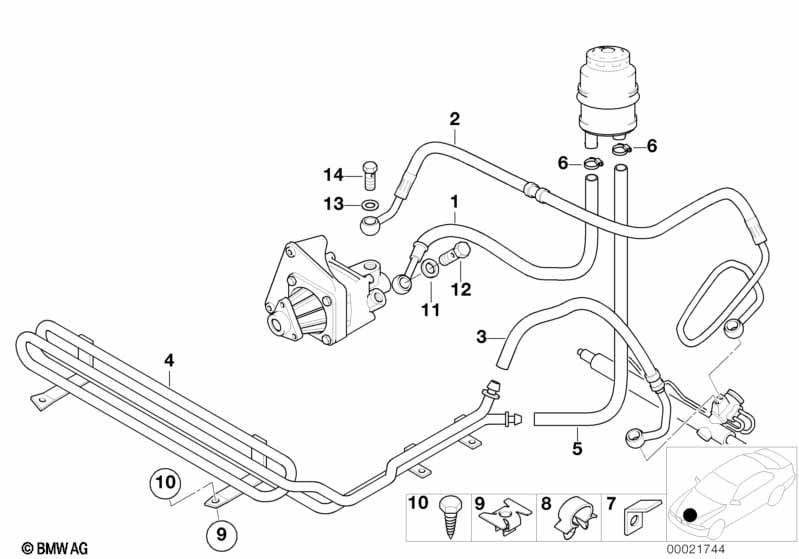

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO TRAILER HITCH ONLY APPLIES TO PERS.TRAILER LOAD 1500KG |
|||||||||
| 02 | Pressure hose assy | 1 | 32411137157 | $216.40 | ENDED | Shop at ECS Tuning | ||||
| 03 | Return pipe | 1 | 32411133541 | $34.92 | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 32411132481 | $133.58 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose | 12X18MM | X | 32411131524 | $35.95 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 07 | Bracket | 1 | 12141269698 | $5.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tubing support | D=18,4 | 1 | 61131368928 | $0.35 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
