Hydro steering-vane pump/bearing support for BMW 7 Series E32 730iL (1994)

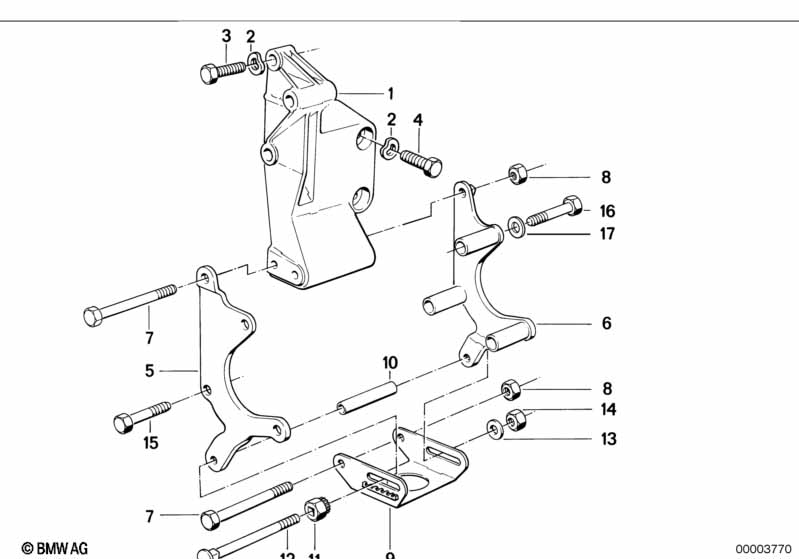

This Hydro steering-vane pump/bearing support technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 12311707194 | $47.37 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 05 | Supporting plate | 1 | 32421713526 | $44.56 | Shop at ECS Tuning | |||||
| 06 | Supporting plate | 1 | 32421717391 | $30.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X105 | 2 | 07119904532 | $1.78 | Shop at ECS Tuning | ||||
| 09 | Adjusting bar | 1 | 12311714450 | $8.07 | Shop at ECS Tuning | |||||
| 10 | Pipe | 1 | 32421713574 | $9.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Idler | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 12 | Saucer-head screw | M8X120 | 1 | 32421708386 | $1.70 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
