Hydro steering-servotronic for BMW 5 Series E34 525i (1990)

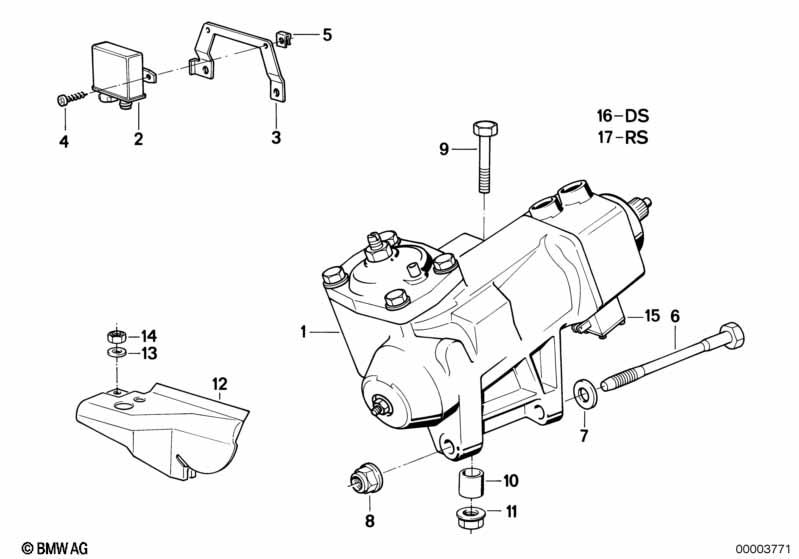

This Hydro steering-servotronic technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO SERVOTRONIC | |||||||||
| 01 | Exch. hydro steering gear | 1 | 09/1989 | 32131138743 | $1737.14 | ENDED | Shop at ECS Tuning | |||
| 02 | Control unit servotronic | 1 | 09/1993 | 32431162703 | $213.23 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair kit | 1 | 09/1993 | 32431162736 | $81.04 | Shop at ECS Tuning | ||||
| 03 | Bracket, control unit | 1 | 61131382882 | $5.08 | Shop at ECS Tuning | |||||
| 04 | Hex head screw | ST3,9X16-C-Z2 | 2 | 07119916808 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Body nut | B3,9 | 2 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 06 | Fit bolt | 1 | 32131136051 | $5.17 | ENDED | Shop at ECS Tuning | ||||
| 07 | Washer | 12-300 HV-ZNS3 | 1 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M12X1,5 | 1 | 32101136023 | $1.52 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M10X90 | 1 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 10 | Bush | 1 | 32101134058 | $11.20 | ENDED | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M10 | 1 | 32101133077 | $2.50 | ENDED | Shop at ECS Tuning | |||
| 15 | Torque converter servotronic | 1 | 32411134770 | $239.28 | Shop at ECS Tuning | |||||
