Hydro steering-tandem vane pump for BMW 8 Series E31 850Ci (1994)
This Hydro steering-tandem vane pump technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO LEVELLING SYSTEM ONLY APPLIES TO ASC+T |
|||||||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 01 | Tandem vane pump | 1 | 32411137748 | $1062.81 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pulley | 1 | 32421715769 | $96.17 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X16-Z1 | 3 | 06/1995 | 07119913102 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 04 | Ribbed v-belt | 6K X 1080 | 1 | 11281736719 | $33.88 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X20-Z3 | 3 | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Support | 1 | 32421736931 | $6.37 | ENDED | Shop at ECS Tuning | ||||

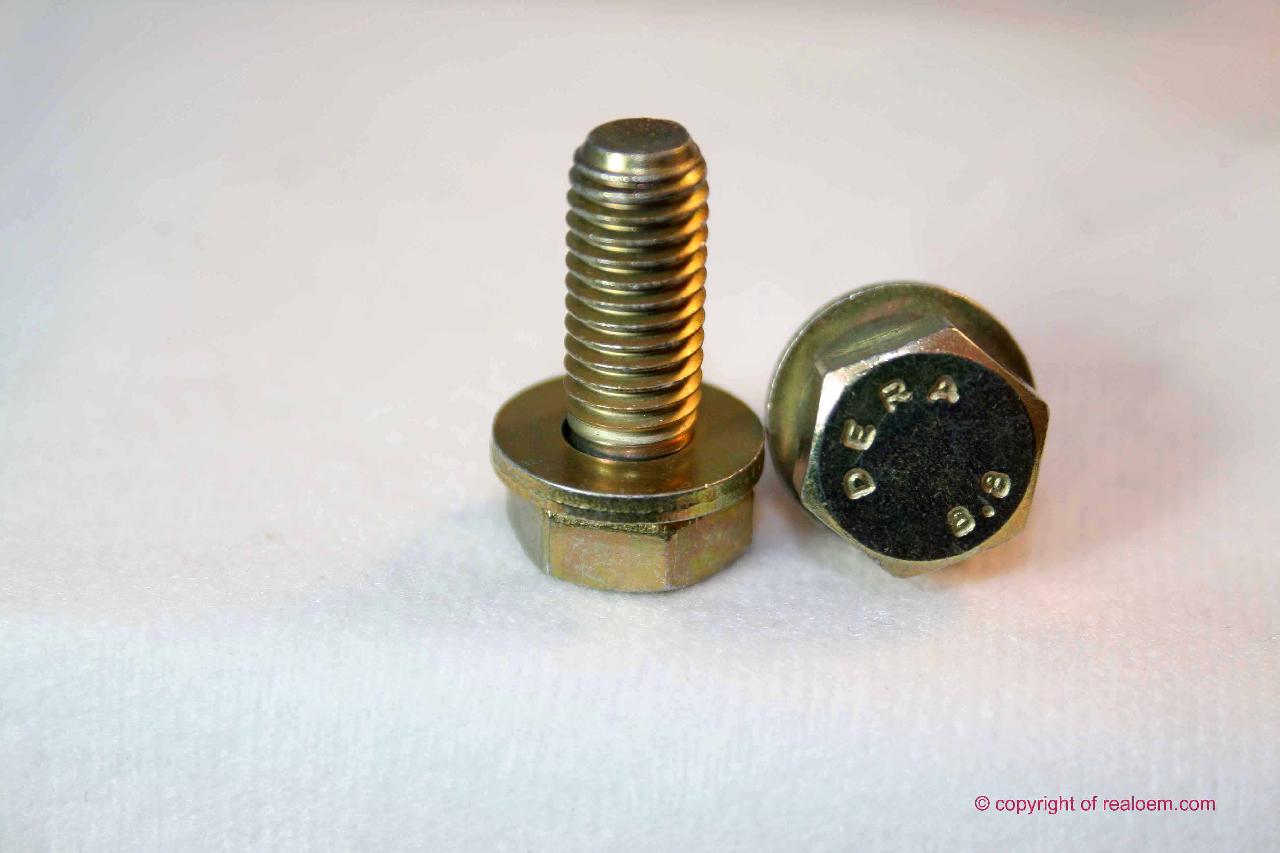

| 07 | Hex bolt with washer | M8X20-Z1 | 1 | 06/1995 | 07119915093 | $0.47 | ENDED | Shop at ECS Tuning | ||
| 08 | Gasket set tandem vane pump | ZF | 1 | 32411134836 | $41.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Hydro steering-tandem vane pump?
- This technical diagram illustrates the Hydro steering-tandem vane pump within the Steering group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Tandem vane pump (Part #32411137748).
- Which models use the hardware listed in this Hydro steering-tandem vane pump?
- The hardware and components featured in the Hydro steering-tandem vane pump are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Tandem vane pump (32411137748) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro steering-tandem vane pump assembly?
- Each item in the Hydro steering-tandem vane pump corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Tandem vane pump by locating its position on the schematic, which then links to the official BMW part number 32411137748 for the Steering section.
