Oil carrier ASC+T/single parts for BMW 8 Series E31 850Ci (1994)

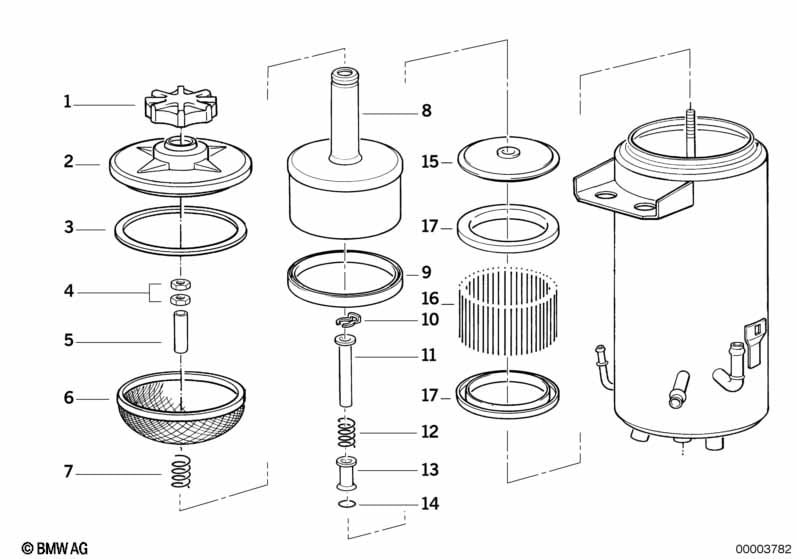

This Oil carrier ASC+T/single parts technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SINGLE COMPONENTS FOR ONLY APPLIES TO ASC+T |
|||||||||
| only applies to | ||||||||||
| -- | Oil carrier | ZF | X | 32411137751 | $187.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Cap | 1 | 32411141132 | $16.36 | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 32411134842 | $19.00 | Shop at ECS Tuning | |||||
| 03 | Gasket | 1 | 32411128929 | $5.07 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6-04-2-ZN | 2 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Spacer tube | 1 | 32411137783 | $3.03 | Shop at ECS Tuning | |||||
| 06 | Oil strainer | 1 | 32411128928 | $31.58 | Shop at ECS Tuning | |||||
| 07 | Compression spring | 1 | 32411136302 | $1.07 | Shop at ECS Tuning | |||||
| 08 | Oil strainer | 1 | 32411136301 | $171.86 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 32411128924 | $1.77 | ENDED | Shop at ECS Tuning | ||||
| 12 | Compression spring | 1 | 32411137670 | $1.68 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 32411128168 | $3.47 | Shop at ECS Tuning | |||||
| 16 | Filter cartridge | 1 | 32411128167 | $14.57 | ENDED | Shop at ECS Tuning | ||||
| 17 | Rubber seal | 2 | 32411137778 | $3.90 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Oil carrier ASC+T/single parts?
- This technical diagram illustrates the Oil carrier ASC+T/single parts within the Steering group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Oil carrier (Part #32411137751).
- Which models use the hardware listed in this Oil carrier ASC+T/single parts?
- The hardware and components featured in the Oil carrier ASC+T/single parts are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Oil carrier (32411137751) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil carrier ASC+T/single parts assembly?
- Each item in the Oil carrier ASC+T/single parts corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Oil carrier by locating its position on the schematic, which then links to the official BMW part number 32411137751 for the Steering section.
