Tie rods with steering damper for BMW 3 Series E21 320i (1977)

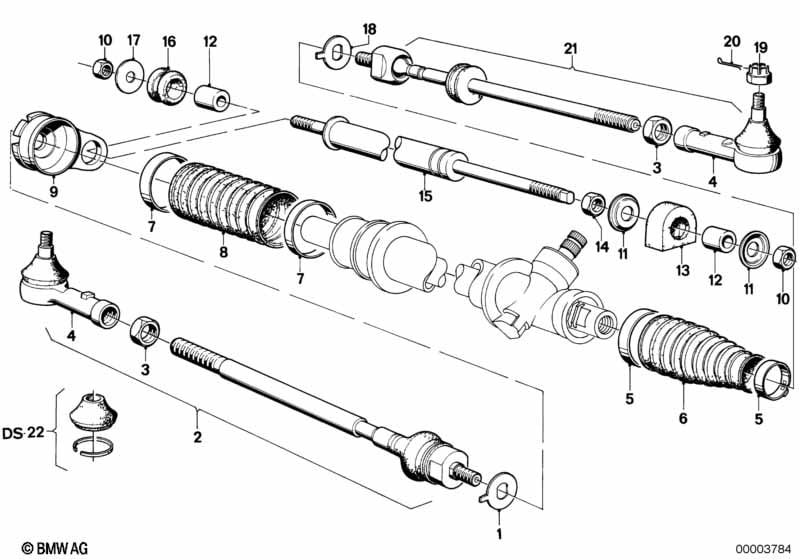

This Tie rods with steering damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Securing plate | 1 | 32111116553 | $3.03 | ENDED | Shop at ECS Tuning | ||||
| 02 | Tie rod | 1 | 09/1980 | 32111115241 | $214.68 | Shop at ECS Tuning | ||||
| 02 | Tie rod | 1 | 09/1980 | 32111115552 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M14X1,5 | 2 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Ball joint | 2 | 32111116463 | $58.80 | Shop at ECS Tuning | |||||
| 05 | Tension strap | 2 | 32131094100 | $2.43 | Shop at ECS Tuning | |||||
| 06 | Rubber boot | 1 | 32111118688 | $13.47 | Shop at ECS Tuning | |||||
| 07 | Tension strap | 2 | 32111137132 | $2.40 | Shop at ECS Tuning | |||||
| 08 | Rubber boot | 1 | 32111117426 | $10.02 | Shop at ECS Tuning | |||||
| 09 | Bracket | 1 | 32111115250 | $7.48 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8X1 | 2 | 32111117965 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Plate | 2 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 12 | Bush | 2 | 32111114805 | $3.82 | Shop at ECS Tuning | |||||
| 13 | Cap | 1 | 32111114806 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8X1 | 1 | 07119921607 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Steering damper | 1 | 32111116229 | ENDED | Shop at ECS Tuning | |||||
| 16 | Grommet | 1 | 32111118474 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 17 | Washer | 1 | 41502475020 | $0.45 | Shop at ECS Tuning | |||||
| 18 | Securing plate | 1 | 32111116563 | $3.03 | Shop at ECS Tuning | |||||
| 19 | Crown nut | M10X1 | 2 | 07119923436 | $2.17 | Shop at ECS Tuning | ||||
| 20 | Split pin | 2X20 | 2 | 07119945112 | $0.40 | Shop at ECS Tuning | ||||
| 21 | Tie rod | 1 | 32111115229 | $128.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
