Steering linkage/tie rods for BMW 5 Series E12 528 (1977)

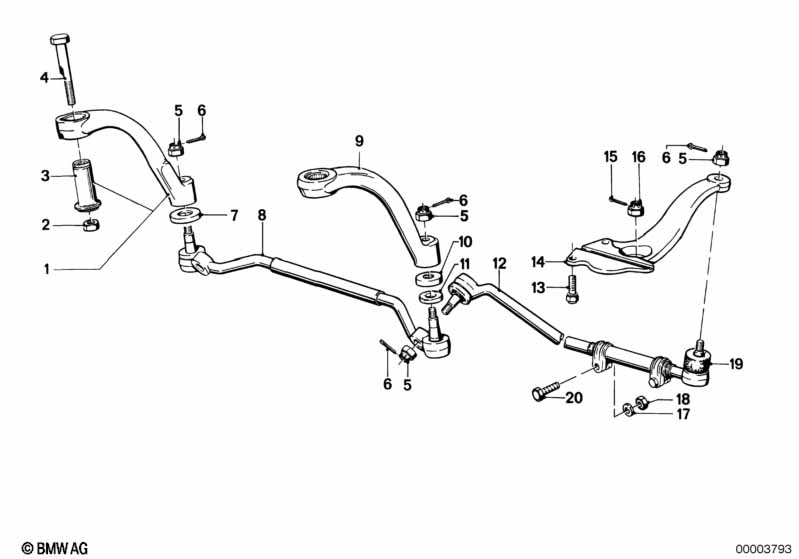

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering arm | 1 | 32211115582 | $67.85 | Shop at ECS Tuning | |||||
| 02 | Self-locking hex nut | M12X1,5-10-PHR | 1 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | D=27MM | 1 | 32211115489 | $14.70 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M12X1,5X80 | 1 | 07119914660 | $2.09 | Shop at ECS Tuning | ||||
| 05 | Crown nut | M10X1 | 6 | 07119923436 | $2.17 | Shop at ECS Tuning | ||||
| 06 | Split pin | 2X20 | 6 | 07119945112 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Tie rod,center | 1 | 32211108070 | ENDED | Shop at ECS Tuning | |||||
| 09 | Pitman arm | 1 | 32211106642 | $43.91 | Shop at ECS Tuning | |||||
| 10 | Kit dust cap | 2 | 32211108363 | $3.53 | Shop at ECS Tuning | |||||
| 11 | Washer-gasket | 2 | 32211101374 | $1.63 | Shop at ECS Tuning | |||||
| 12 | Tie rod | 2 | 32211124475 | $114.13 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M 10 | 6 | 32211113179 | $5.12 | ENDED | Shop at ECS Tuning | |||
| 14 | Left tie rod lever | 1 | 32211108267 | $113.83 | Shop at ECS Tuning | |||||
| 14 | Right tie rod arm | 1 | 32211108268 | $73.51 | Shop at ECS Tuning | |||||
| 15 | Split pin | 3,2X18 | 2 | 07119945193 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Crown nut | M12 | 2 | 31122624120 | $2.05 | ENDED | Shop at ECS Tuning | |||
| 17 | Spring washer | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 18 | Self-locking hex nut | M8X1 | 4 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 19 | Ball joint | 2 | 32211114843 | $41.23 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M8X1X35 | 4 | 07119911616 | $2.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
