Steering linkage/tie rods for BMW 3 Series E30 320i (1991)

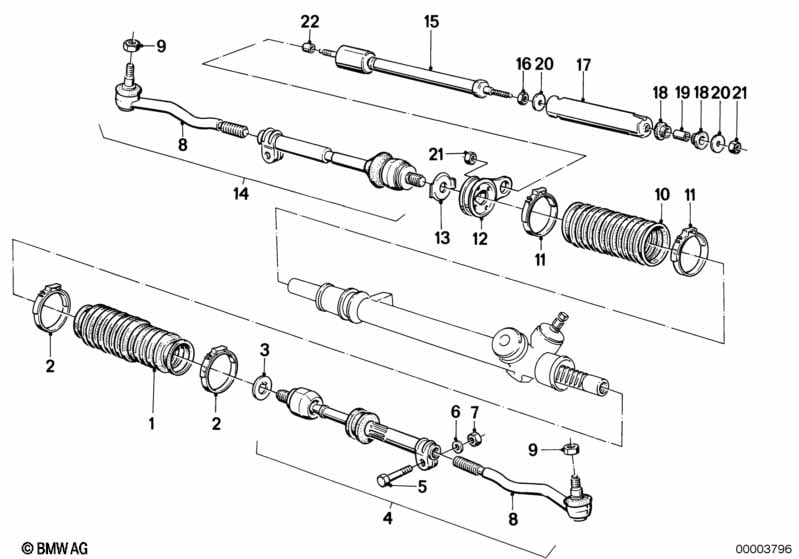

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | WITH STEERING DAMPER only applies to airbag |
|||||||||
| 01 | Rubber boot | 1 | 32111127104 | $16.37 | Shop at ECS Tuning | |||||
| 02 | Tension strap | 2 | 32131094100 | $2.43 | Shop at ECS Tuning | |||||
| 03 | Securing plate | 1 | 32111124540 | $0.39 | Shop at ECS Tuning | |||||
| 04 | Tie rod | 1 | 32111126360 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X1X30 | 2 | 07119911611 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8X1 | 2 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Ball joint | 2 | 32111126757 | $87.79 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 10 | Rubber boot | 1 | 32111117426 | $10.02 | Shop at ECS Tuning | |||||
| 11 | Tension strap | 2 | 32111137132 | $2.40 | Shop at ECS Tuning | |||||
| 12 | Bracket | 1 | 32111126406 | $7.29 | Shop at ECS Tuning | |||||
| 13 | Securing plate | 1 | 32111126414 | $0.37 | Shop at ECS Tuning | |||||
| 14 | Tie rod | 1 | 32111126362 | Shop at ECS Tuning | ||||||
| 15 | Steering damper | 1 | 32111127711 | Shop at ECS Tuning | ||||||
| 16 | Hex nut | M8X1 | 1 | 07119921607 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Protection tube | 1 | 32111125172 | $5.35 | Shop at ECS Tuning | |||||
| 18 | Bush | 4 | 32111124988 | $1.57 | Shop at ECS Tuning | |||||
| 19 | Bush | 1 | 32111114805 | $3.82 | Shop at ECS Tuning | |||||
| 20 | Washer | 2 | 32312782173 | $0.80 | Shop at ECS Tuning | |||||
| 21 | Hex nut | M8X1 | 2 | 32111117965 | $0.20 | Shop at ECS Tuning | ||||
| 22 | Bush | 1 | 32111124989 | $1.20 | Shop at ECS Tuning | |||||
