Steering linkage/tie rods for BMW 3 Series E30 325e (1987)

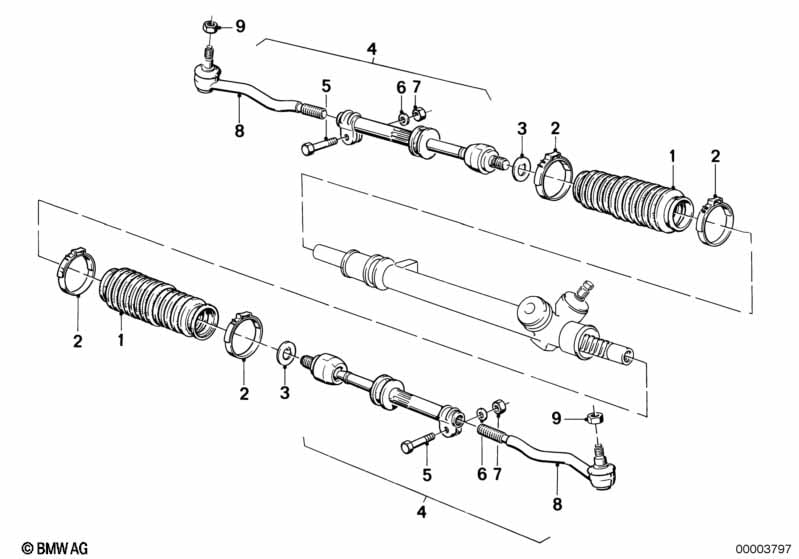

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Rubber boot | 2 | 32111127104 | $16.37 | Shop at ECS Tuning | |||||
| 02 | Tension strap | 4 | 32131094100 | $2.43 | Shop at ECS Tuning | |||||
| 03 | Securing plate | 2 | 32111124540 | $0.39 | Shop at ECS Tuning | |||||
| 04 | Tie rod | 2 | 32111126360 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X1X30 | 2 | 07119911611 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8X1 | 2 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Ball joint | 2 | 32111126757 | $87.79 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
