Steering linkage/tie rods for BMW 5 Series E28 535i (1987)

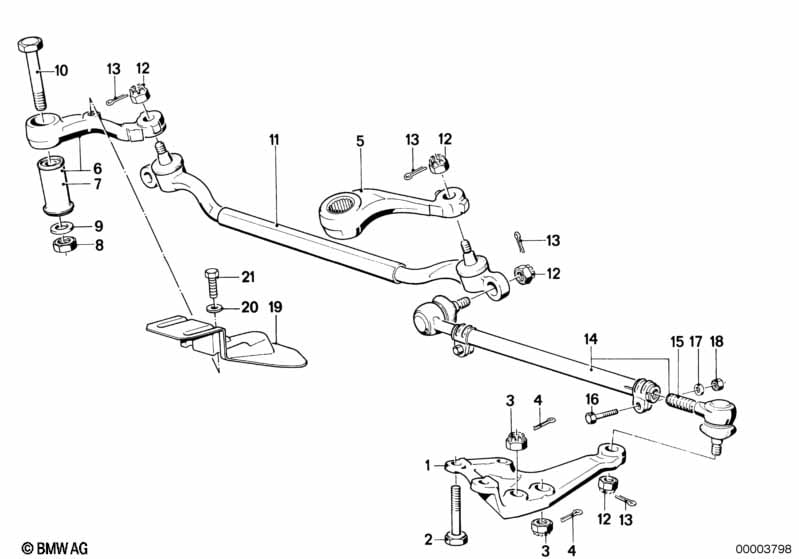

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Power steering |
=Yes |
|||||||||
| 01 | Left tie rod lever | 1 | 32211124430 | $85.30 | Shop at ECS Tuning | |||||
| 01 | Right tie rod arm | 1 | 32211124431 | $85.30 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M10X20-10.9-PHR | 6 | 07119913830 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M14X1,5 05 ZNS3 | 4 | 09/1986 | 31106769443 | $1.35 | Shop at ECS Tuning | |||
| 05 | Pitman arm | 1 | 32211134277 | $74.53 | Shop at ECS Tuning | |||||
| 06 | Steering arm | D=27MM | 1 | 32211136450 | $100.43 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | D=27MM | 1 | 09/1986 | 32211136452 | $26.77 | Shop at ECS Tuning | |||
| 08 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||

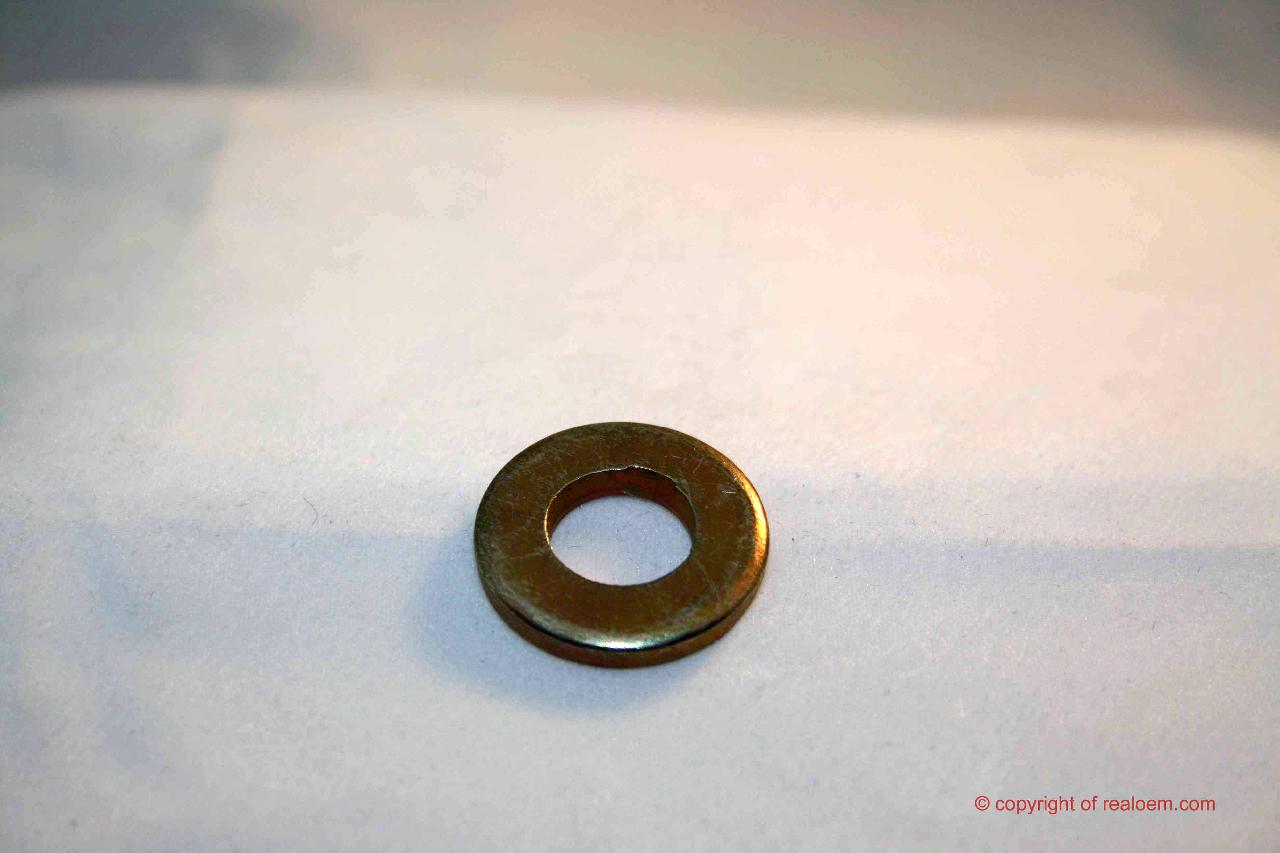

| 09 | Washer | A10,5X22 | 1 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M10X75 | 1 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Tie rod,center | 1 | 32211129014 | $186.67 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 11 | Tie rod,center | 1 | 32211129015 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex nut | M10X1 | 2 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 12 | Crown nut | M10X1 | 8 | 07119923436 | $2.17 | Shop at ECS Tuning | ||||
| 13 | Split pin | 2X20 | 8 | 07119945112 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Tie rod | 2 | 32211135668 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex nut | M10X1 | X | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 15 | Ball joint right-handed thread | 1 | 12/1987 | 32211135820 | $40.14 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Self-locking hex nut | M10X1 | X | 12/1987 | 07129922436 | $0.54 | Shop at ECS Tuning | |||
| 15 | Ball joint right-handed thread | 1 | 32211135824 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 15 | Ball joint left-handed thread | 1 | 32211135822 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking hex nut | M10X1 | X | 07129922436 | $0.54 | Shop at ECS Tuning | ||||

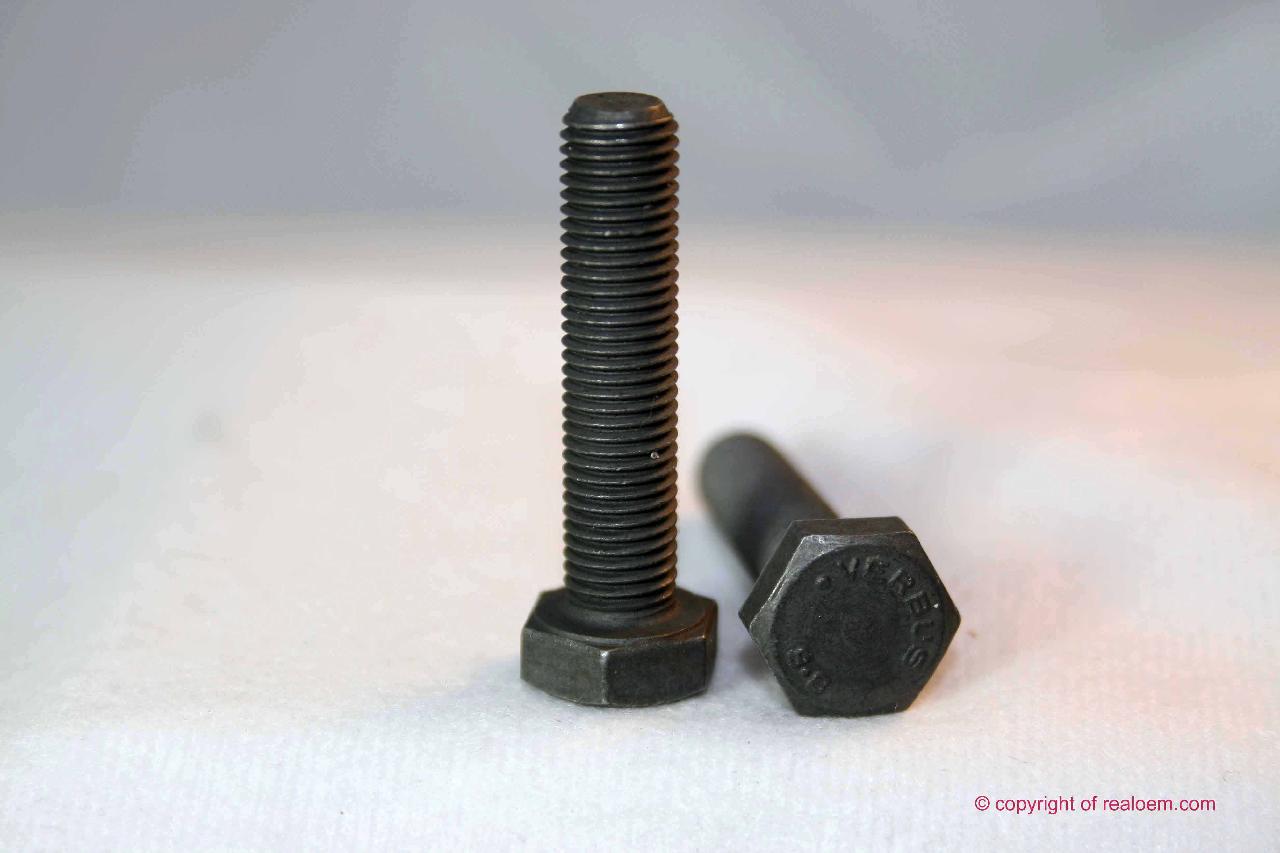

| 16 | Hex bolt | M8X1X35 | 4 | 07119911616 | $2.13 | Shop at ECS Tuning | ||||
| 17 | Spring washer | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 18 | Self-locking hex nut | M8X1 | 4 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
