Steering linkage/tie rods for BMW 5 Series E34 535i (1993)

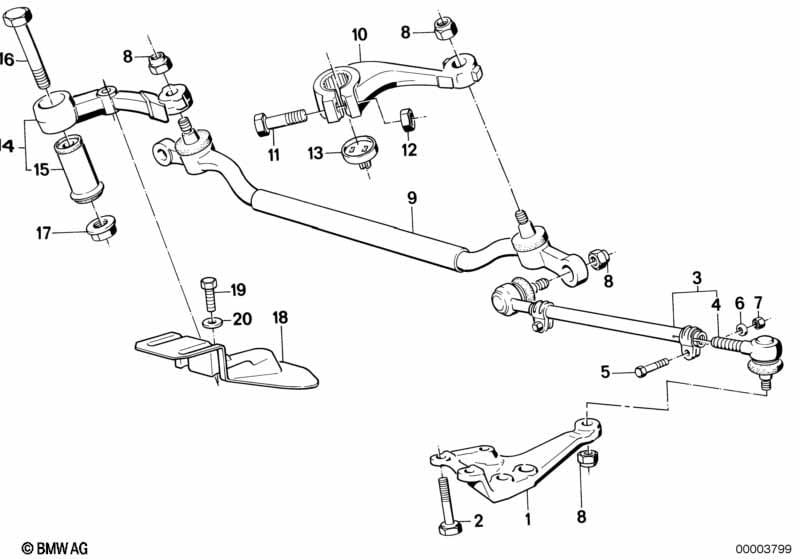

This Steering linkage/tie rods technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left tie rod lever | 1 | 31131133557 | $139.31 | Shop at ECS Tuning | |||||
| 01 | Right tie rod arm | 1 | 31131133558 | $139.31 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M12X1,5X25 | 6 | 07119911694 | $0.82 | Shop at ECS Tuning | ||||
| 03 | Tie rod | 2 | 32211135668 | Shop at ECS Tuning | ||||||
| 04 | Ball joint right-handed thread | 1 | 32211135824 | Shop at ECS Tuning | ||||||
| 04 | Ball joint left-handed thread | 1 | 32211135822 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X1X30 | 4 | 07119911611 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8X1 | 4 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M10X1 | 6 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| 09 | Tie rod,center | 1 | 32211138855 | $174.45 | ENDED | Shop at ECS Tuning | ||||
| 09 | Tie rod,center | 1 | 32211138865 | Shop at ECS Tuning | ||||||
| 10 | Pitman arm | D=30MM | 1 | 09/1989 | 32211137467 | $110.65 | Shop at ECS Tuning | |||
| 10 | Pitman arm | ZA | 1 | 09/1989 | 32211139009 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M10X57 | 1 | 09/1989 | 32211137483 | $3.33 | Shop at ECS Tuning | |||
| 12 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Spacer | 1 | 32211130947 | $1.50 | Shop at ECS Tuning | |||||
| 14 | Steering arm | D=27MM | 1 | 32211136450 | $100.43 | Shop at ECS Tuning | ||||
| 15 | Rubber Mounting | D=27MM | 1 | 32211136452 | $26.77 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M10X75 | 1 | 07119912677 | $1.18 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M10 | 1 | 32101133077 | $2.50 | ENDED | Shop at ECS Tuning | |||
| 18 | Heat resistant plate | 1 | 32211128596 | $23.40 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 20 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Steering linkage/tie rods?
- This technical diagram illustrates the Steering linkage/tie rods within the Steering group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Left tie rod lever (Part #31131133557).
- Which models use the hardware listed in this Steering linkage/tie rods?
- The hardware and components featured in the Steering linkage/tie rods are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Left tie rod lever (31131133557) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering linkage/tie rods assembly?
- Each item in the Steering linkage/tie rods corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Left tie rod lever by locating its position on the schematic, which then links to the official BMW part number 31131133557 for the Steering section.
