Steer.col.-steer. spin. for BMW 5 Series E12 520 (1981)

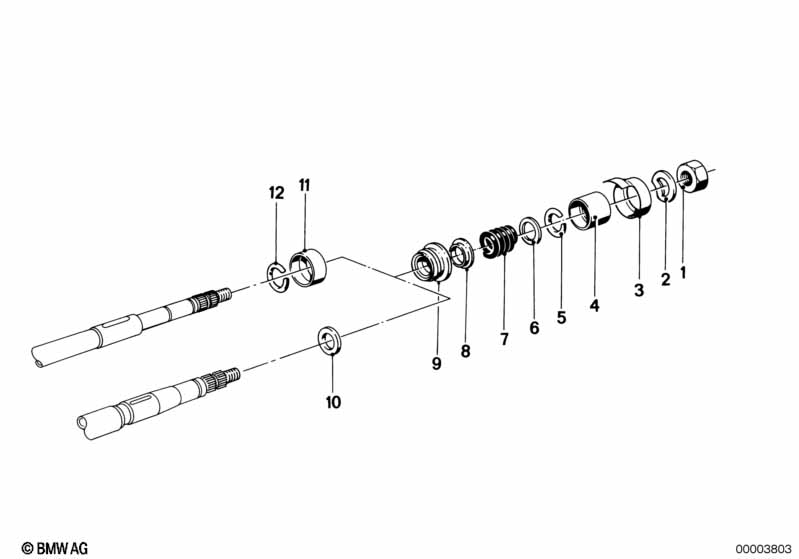

This Steer.col.-steer. spin. technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Retainer | 1 | 32321118825 | $15.17 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 05 | Snap ring | 1 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 07 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 08 | backup ring | 1 | 32311116374 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Steering spindle bearing | 1 | 32311107627 | $99.90 | Shop at ECS Tuning | |||||
| 10 | Washer | 1 | 32311108620 | ENDED | Shop at ECS Tuning | |||||
| 11 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 12 | Snap ring | 1 | 32311113566 | $0.37 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Steer.col.-steer. spin.?
- This technical diagram illustrates the Steer.col.-steer. spin. within the Steering group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Self-locking hex nut (Part #31106774714).
- Which models use the hardware listed in this Steer.col.-steer. spin.?
- The hardware and components featured in the Steer.col.-steer. spin. are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Self-locking hex nut (31106774714) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steer.col.-steer. spin. assembly?
- Each item in the Steer.col.-steer. spin. corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Self-locking hex nut by locating its position on the schematic, which then links to the official BMW part number 31106774714 for the Steering section.
