Steering column-tube/trim panel for BMW 5 Series E12 520 (1981)

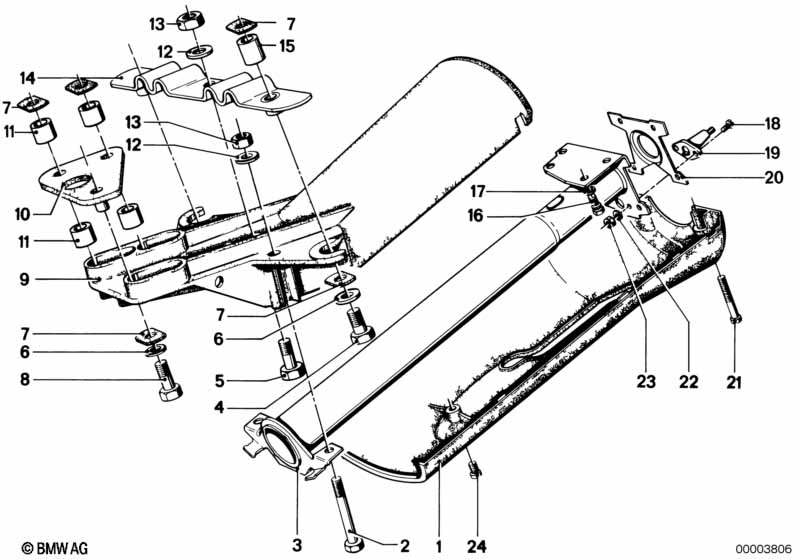

This Steering column-tube/trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FIXED | |||||||||
| 01 | Lower trim panel | 1 | 32311152990 | $41.47 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X70 | 2 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| 03 | Steering column tube | 1 | 32311110691 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X28-ZN | 2 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | A8,4X25 | 5 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Washer | 8 | 32311110633 | $0.21 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X35 | 3 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Trim panel upper part | 1 | 32311110624 | $82.31 | ENDED | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | 4 | 32311118185 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 13 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 15 | Spacer sleeve | 2 | 32311118184 | ENDED | Shop at ECS Tuning | |||||
| 16 | Fracture bolt | M6X14 | 4 | 32321109641 | $1.39 | Shop at ECS Tuning | ||||
| 17 | Spring washer Black | B6-ZN | 4 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 17 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 18 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Carbon pin | 1 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 20 | Holder | 1 | 32311108670 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 21 | Fillister head screw | M6X55 | 2 | 07119906437 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 22 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 24 | Fillister-head screw | M6X8 | 1 | 07119906436 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Steering column-tube/trim panel?
- This technical diagram illustrates the Steering column-tube/trim panel within the Steering group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Lower trim panel (Part #32311152990).
- Which models use the hardware listed in this Steering column-tube/trim panel?
- The hardware and components featured in the Steering column-tube/trim panel are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Lower trim panel (32311152990) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-tube/trim panel assembly?
- Each item in the Steering column-tube/trim panel corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Lower trim panel by locating its position on the schematic, which then links to the official BMW part number 32311152990 for the Steering section.
