Steering column-bearing sup./single part for BMW 5 Series E12 528i (1977)

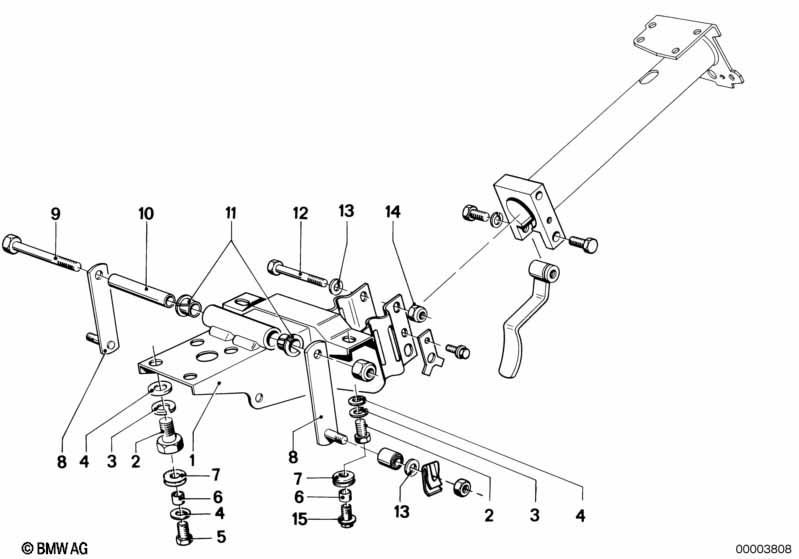

This Steering column-bearing sup./single part technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ADJUSTABLE | |||||||||
| 01 | Supporting bracket | 1 | 32311113829 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X16-10.9-PHR | 5 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 5 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Guide bush | 3 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 08 | Lever | 2 | 32311118032 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M10X115 | 1 | 07119912716 | ENDED | Shop at ECS Tuning | ||||
| 10 | Spacer sleeve | 1 | 32311106423 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bushing | 2 | 32311114416 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M8X20-Z3-1 | 5 | 07119915178 | $0.71 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
