Steering column-bearing sup./single part for BMW 5 Series E12 525 (1976)

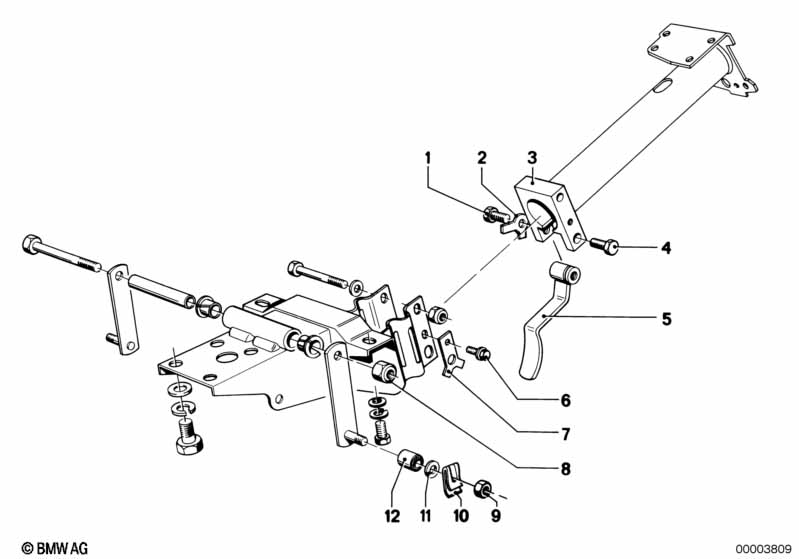

This Steering column-bearing sup./single part technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ADJUSTABLE | |||||||||
| 01 | Hex bolt | M10X22 | 1 | 07119911834 | ENDED | Shop at ECS Tuning | ||||
| 02 | Securing plate | 10,5 | 1 | 07119935632 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clamping | 1 | 32311121211 | $18.97 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M10X22LH | 1 | 07119911835 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lever | 1 | 32311152992 | $7.48 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X10 | X | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X10-Z3-2 | 1 | 07119915011 | ENDED | Shop at ECS Tuning | ||||
| 07 | Securing plate | 1 | 32311108837 | $2.12 | ENDED | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 10 | Clamp | 2 | 32311106424 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Rubber Mounting | 2 | 32311109031 | $11.56 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Steering column-bearing sup./single part?
- This technical diagram illustrates the Steering column-bearing sup./single part within the Steering group for the 5 Series E12 525 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119911834).
- Which models use the hardware listed in this Steering column-bearing sup./single part?
- The hardware and components featured in the Steering column-bearing sup./single part are specific to the 5 Series E12 525 produced during 1976. These technical specifications ensure that parts like the Hex bolt (07119911834) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-bearing sup./single part assembly?
- Each item in the Steering column-bearing sup./single part corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119911834 for the Steering section.
