Steer.col.-steer. spin. upper for BMW 7 Series E23 733i (1982)

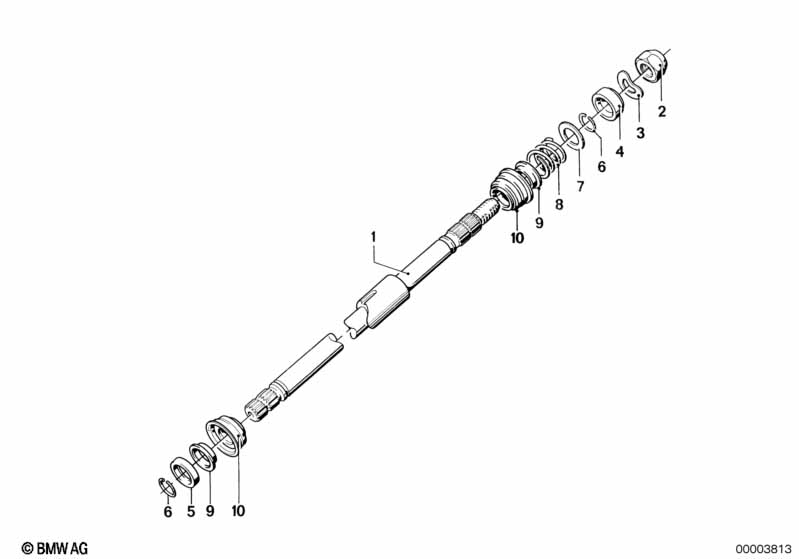

This Steer.col.-steer. spin. upper technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering spindle upper | 1 | 32311113825 | $90.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 03 | Washer | A15 ZNS3 | 1 | 07119905829 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 05 | Ring | 1 | 32311112959 | $3.83 | Shop at ECS Tuning | |||||
| 06 | Snap ring | 2 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 09 | backup ring | 1 | 32311116374 | $0.93 | Shop at ECS Tuning | |||||
| 10 | Steering spindle bearing | 35,10X18,10 | 2 | 09/1979 | 32311150601 | $8.49 | Shop at ECS Tuning | |||
| 10 | Steering spindle bearing | 35,10X18,10 | 2 | 09/1979 | 32311150601 | $8.49 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Steer.col.-steer. spin. upper?
- This technical diagram illustrates the Steer.col.-steer. spin. upper within the Steering group for the 7 Series E23 733i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Steering spindle upper (Part #32311113825).
- Which models use the hardware listed in this Steer.col.-steer. spin. upper?
- The hardware and components featured in the Steer.col.-steer. spin. upper are specific to the 7 Series E23 733i produced during 1982. These technical specifications ensure that parts like the Steering spindle upper (32311113825) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steer.col.-steer. spin. upper assembly?
- Each item in the Steer.col.-steer. spin. upper corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Steering spindle upper by locating its position on the schematic, which then links to the official BMW part number 32311113825 for the Steering section.
