Steering column-trim panel/attach.p. for BMW 7 Series E23 728 (1979)

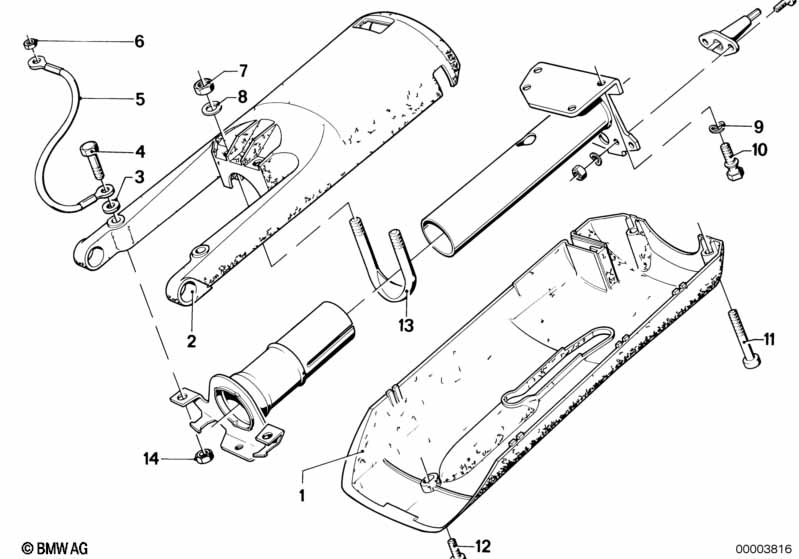

This Steering column-trim panel/attach.p. technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lower trim panel | 1 | 32311152991 | $25.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel upper part | 1 | 09/1979 | 32311117300 | $65.45 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X45 8.8 ZNS3 | 2 | 09/1984 | 07119902976 | $0.45 | Shop at ECS Tuning | |||
| 05 | Ground cable | 1 | 32311152363 | $2.39 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 09 | Tooth washer | A6,4 | 4 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Fracture bolt | M6X14 | 4 | 32321109641 | $1.39 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M6X55 | 1 | 07119906437 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 12 | Fillister-head screw | M6X8 | 1 | 07119906436 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Bow | 1 | 32311111789 | $8.59 | ENDED | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M6-10 ZN | 2 | 05/1986 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 14 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
