Steering column-bearing sup./single part for BMW 7 Series E23 728iS (1982)

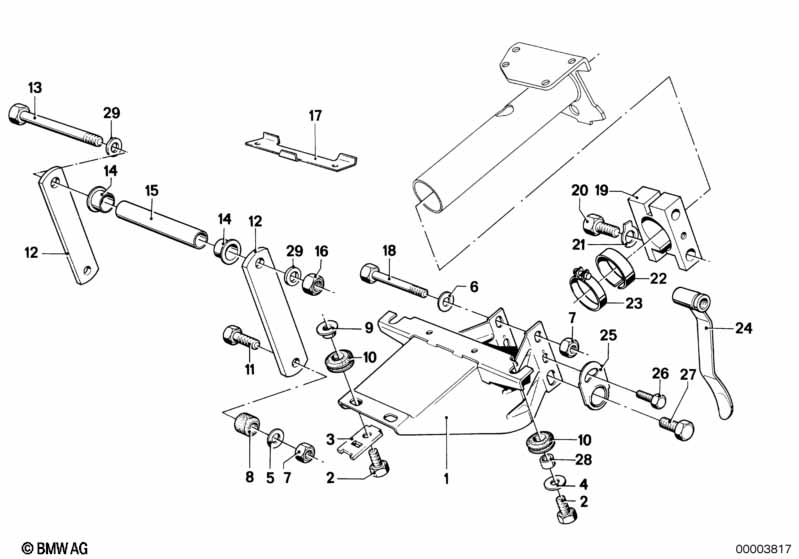

This Steering column-bearing sup./single part technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 32311117822 | $17.19 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X22-SB-Z4 | 3 | 07119915160 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 61131363403 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | 2 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | 2 | 32312782173 | $0.80 | Shop at ECS Tuning | |||||
| 06 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 32311109031 | $11.56 | Shop at ECS Tuning | |||||
| 09 | Bush | 1 | 32311118565 | ENDED | Shop at ECS Tuning | |||||
| 10 | Guide bush | 3 | 32311111185 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Lever | 2 | 09/1984 | 32311116284 | $2.73 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex bolt | M10X170 | 1 | 09/1984 | 07119912752 | $4.05 | Shop at ECS Tuning | |||
| 14 | Bushing | 2 | 09/1984 | 32311114416 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Spacer tube | 1 | 09/1984 | 32311112679 | $2.51 | ENDED | Shop at ECS Tuning | |||
| 16 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 19 | Clamping | 1 | 32311121211 | $18.97 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M10X22 | 1 | 07119911834 | ENDED | Shop at ECS Tuning | ||||
| 21 | Securing plate | 10,5 | 1 | 07119935632 | ENDED | Shop at ECS Tuning | ||||
| 24 | Lever | 1 | 32311152992 | $7.48 | Shop at ECS Tuning | |||||
| 25 | Securing plate | 1 | 32311108837 | $2.12 | ENDED | Shop at ECS Tuning | ||||
| 26 | Hex bolt | M6X10 | X | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 26 | Hex bolt with washer | M6X10-Z3-2 | 1 | 07119915011 | ENDED | Shop at ECS Tuning | ||||
| 27 | Hex bolt | M10X22LH | 1 | 07119911835 | ENDED | Shop at ECS Tuning | ||||
| 28 | Spacer tube | 2 | 32311111186 | $0.88 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
