Steering column-column tube/attach.p. for BMW 7 Series E23 728 (1979)

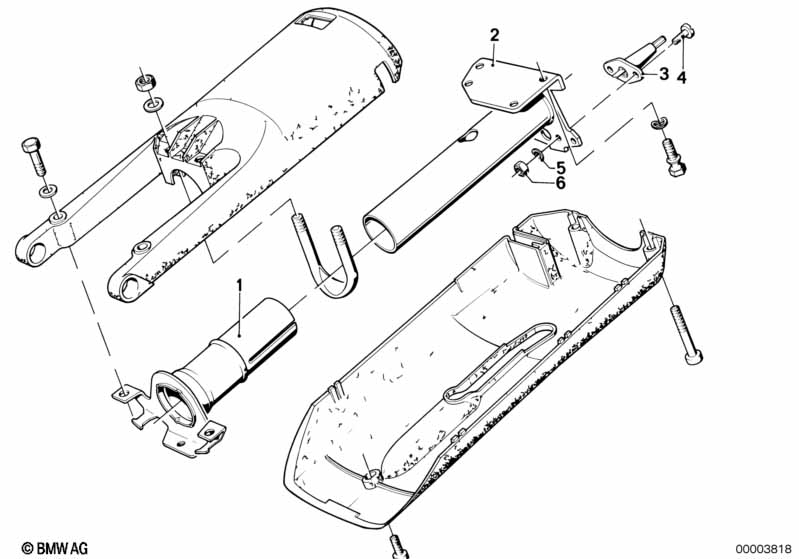

This Steering column-column tube/attach.p. technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering column tube | 1 | 09/1979 | 32311119690 | $17.86 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Steering spindle bearing | 35,10X18,10 | 1 | 09/1979 | 32311150601 | $8.49 | Shop at ECS Tuning | |||
| -- | Steering column tube | 1 | 09/1979 | 32311151762 | $39.90 | ENDED | Shop at ECS Tuning | |||
| 02 | Steering column tube | 1 | 09/1979 | 32311106736 | $38.22 | ENDED | Shop at ECS Tuning | |||
| 02 | Steering column tube | 1 | 09/1979 | 32311151762 | $39.90 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Steering column tube | 1 | 09/1979 | 32311119690 | $17.86 | ENDED | Shop at ECS Tuning | |||
| -- | Steering spindle bearing | 35,10X18,10 | 1 | 09/1979 | 32311150601 | $8.49 | Shop at ECS Tuning | |||
| 03 | Carbon pin | 1 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Steering column-column tube/attach.p.?
- This technical diagram illustrates the Steering column-column tube/attach.p. within the Steering group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Steering column tube (Part #32311119690).
- Which models use the hardware listed in this Steering column-column tube/attach.p.?
- The hardware and components featured in the Steering column-column tube/attach.p. are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Steering column tube (32311119690) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-column tube/attach.p. assembly?
- Each item in the Steering column-column tube/attach.p. corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Steering column tube by locating its position on the schematic, which then links to the official BMW part number 32311119690 for the Steering section.
