Steering column-tube/trim panel for BMW 5 Series E28 518i (1983)

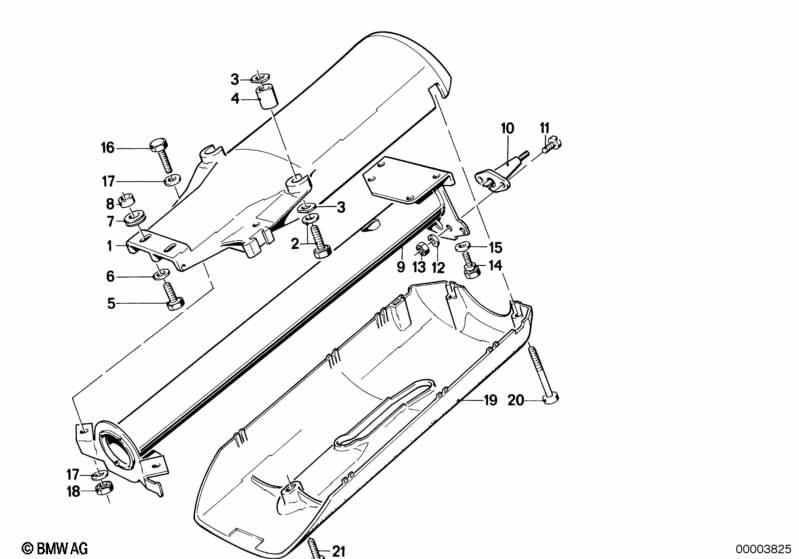

This Steering column-tube/trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FIXED | |||||||||
| 01 | Trim panel upper part | 1 | 32311151357 | $148.43 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X35-Z3-2 | 2 | 07119915175 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 4 | 32311110633 | $0.21 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spacer tube | 2 | 32311151253 | $1.34 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fracture bolt | M8X28 9.8 | 1 | 32311158528 | $1.83 | Shop at ECS Tuning | ||||
| 06 | Washer | 1 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 07 | Guide bush | 1 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 08 | Spacer tube | 1 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 09 | Steering column tube | 1 | 32311151625 | $69.47 | ENDED | Shop at ECS Tuning | ||||
| 10 | Carbon pin | 1 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Fracture bolt | M6X14 | 4 | 32321109641 | $1.39 | Shop at ECS Tuning | ||||
| 15 | Spring washer Black | B6-ZN | 4 | 12/1987 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 15 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 19 | Lower trim panel | 1 | 32311152990 | $41.47 | Shop at ECS Tuning | |||||
| 20 | Fillister head screw | M6X55 | 2 | 07119906437 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 21 | Fillister-head screw | M6X8 | 1 | 07119906436 | $0.20 | Shop at ECS Tuning | ||||
