Steering column-bearing sup./single part for BMW 6 Series E24 633CSi (1984)

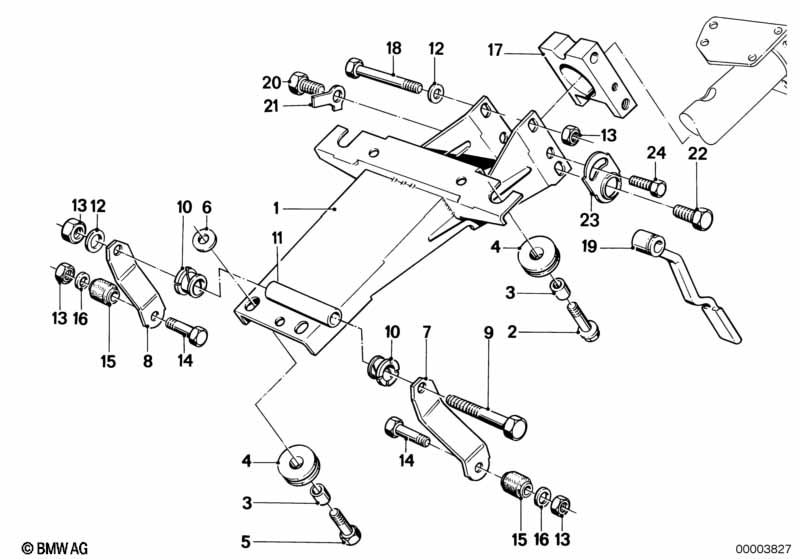

This Steering column-bearing sup./single part technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex bolt with washer | M8X20-Z3-2 | 3 | 09/1982 | 07119915159 | ENDED | Shop at ECS Tuning | |||
| 03 | Spacer tube | 3 | 09/1982 | 32311111186 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Guide bush | 3 | 09/1982 | 32311093601 | $0.48 | Shop at ECS Tuning | ||||
| 05 | Fracture bolt | M8X28 9.8 | 2 | 09/1982 | 32311158528 | $1.83 | Shop at ECS Tuning | |||
| 06 | Washer | 2 | 09/1982 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | |||
| 07 | Lever left | 1 | 09/1982 | 09/1985 | 32311151217 | ENDED | Shop at ECS Tuning | |||
| 08 | Lever right | 1 | 09/1982 | 09/1985 | 32311151218 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X110-8.8 | 1 | 09/1982 | 07119906728 | Shop at ECS Tuning | ||||
| 10 | Bushing | 2 | 09/1982 | 32311153860 | $0.70 | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | 1 | 09/1982 | 32311150423 | $2.34 | ENDED | Shop at ECS Tuning | |||
| 12 | Washer | 8,4X16X1,6-ZNNV | 2 | 09/1982 | 07119907030 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M8-8-ZNNI SI | 5 | 09/1982 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 14 | Hex bolt | M8X35 | 2 | 09/1982 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| 15 | Rubber Mounting | 2 | 09/1982 | 32311109031 | $11.56 | Shop at ECS Tuning | ||||
| 16 | Washer | 2 | 09/1982 | 32312782173 | $0.80 | Shop at ECS Tuning | ||||
| 17 | Clamping | 1 | 09/1982 | 32311121211 | $18.97 | ENDED | Shop at ECS Tuning | |||
| 18 | Hexagon bolt | M8X65 | 1 | 09/1982 | 02/2000 | 07119903018 | Shop at ECS Tuning | |||
| 18 | Hex bolt | M8X65 | 1 | 09/1982 | 41117006311 | $6.28 | Shop at ECS Tuning | |||
| 19 | Lever | 1 | 09/1982 | 32311152992 | $7.48 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M10X22 | 1 | 09/1982 | 07119911834 | ENDED | Shop at ECS Tuning | |||
| 21 | Securing plate | 10,5 | 1 | 09/1982 | 07119935632 | ENDED | Shop at ECS Tuning | |||
| 22 | Hex bolt | M10X22LH | 1 | 09/1982 | 07119911835 | ENDED | Shop at ECS Tuning | |||
| 23 | Securing plate | 1 | 09/1982 | 32311108837 | $2.12 | ENDED | Shop at ECS Tuning | |||
| 24 | Hex bolt | M6X10 | X | 09/1982 | 07119900054 | $0.25 | Shop at ECS Tuning | |||
| 24 | Hex bolt with washer | M6X10-Z3-2 | 1 | 09/1982 | 07119915011 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
