Steer.col.-steer. spin. upper for BMW 3 Series E30 M3 (1990)

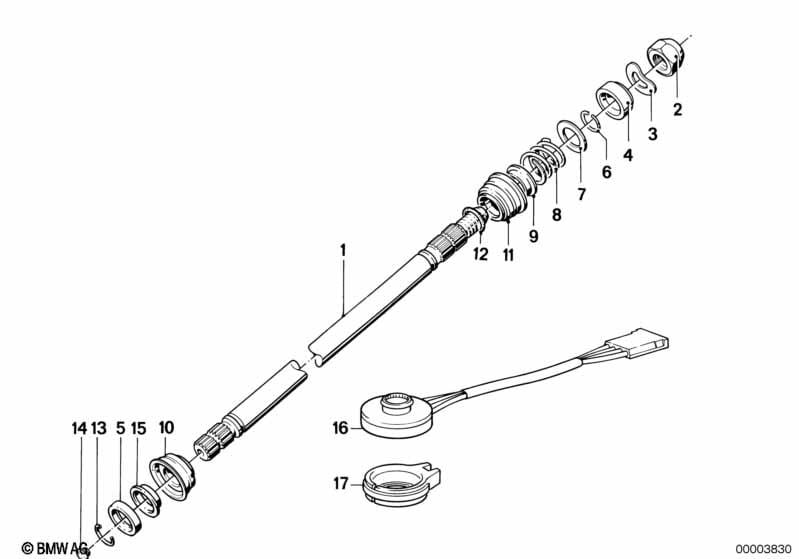

This Steer.col.-steer. spin. upper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Steering spindle upper | 1 | 32311156068 | $63.37 | Shop at ECS Tuning | |||||
| 02 | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 03 | Washer | A15 ZNS3 | 1 | 07119905829 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Ring | 14 MM | 1 | 32311120260 | $6.79 | ENDED | Shop at ECS Tuning | |||
| 05 | Ring | 1 | 32311112959 | $3.83 | Shop at ECS Tuning | |||||
| 06 | Snap ring | 1 | 32312083712 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Washer | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 09 | Washer | 1 | 03/1988 | 32311158061 | $0.22 | Shop at ECS Tuning | ||||
| 09 | Washer | 1 | 03/1988 | 32311159247 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Steering spindle bearing steel | 1 | 32311158686 | $31.56 | Shop at ECS Tuning | |||||
| 11 | Steering spindle bearing | 1 | 03/1988 | 32311157399 | ENDED | Shop at ECS Tuning | ||||
| 13 | Snap ring | 1 | 32311113566 | $0.37 | Shop at ECS Tuning | |||||
| 15 | backup ring | 1 | 32311116374 | $0.93 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
