Steering column-tube/trim panel for BMW 6 Series E24 M6 (1988)

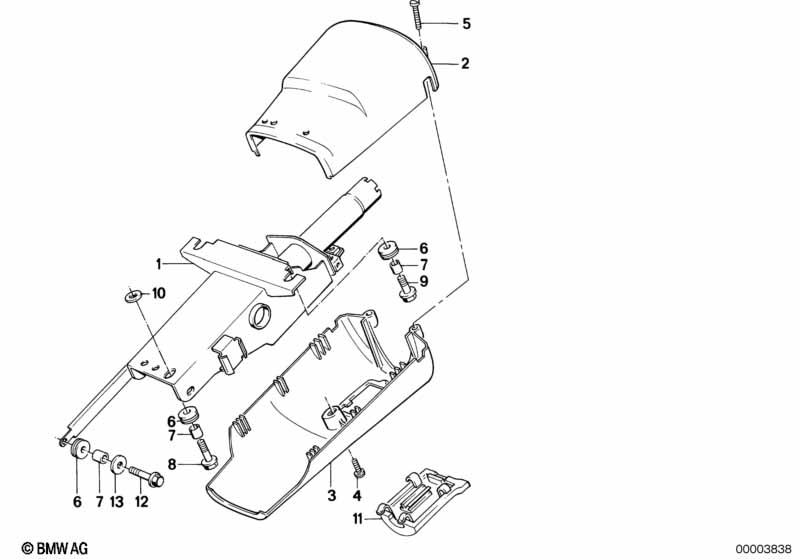

This Steering column-tube/trim panel technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | |||||||||
| 01 | Supporting bracket | 1 | 32311156152 | $22.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel upper part | 1 | 32311152204 | $65.02 | Shop at ECS Tuning | |||||
| 03 | Lower trim panel | 1 | 32311156468 | $42.20 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M5X12-Z3-ZN | 2 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Self tapping screw | 5X15 | 2 | 32311158376 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X35-Z3 | 2 | 07119906833 | $0.24 | Shop at ECS Tuning | ||||
| 05 | Self tapping screw | 5X35 | 2 | 32311158355 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Guide bush | 4 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 07 | Spacer tube | 4 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 08 | Fracture bolt | M8X28 9.8 | 2 | 32311158528 | $1.83 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X20-Z3-2 | 1 | 07119915159 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | 2 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 32311156471 | $7.29 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 13 | Washer | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
