Steer.col.-lower joint assy for BMW 3 Series E30 M3 (1990)

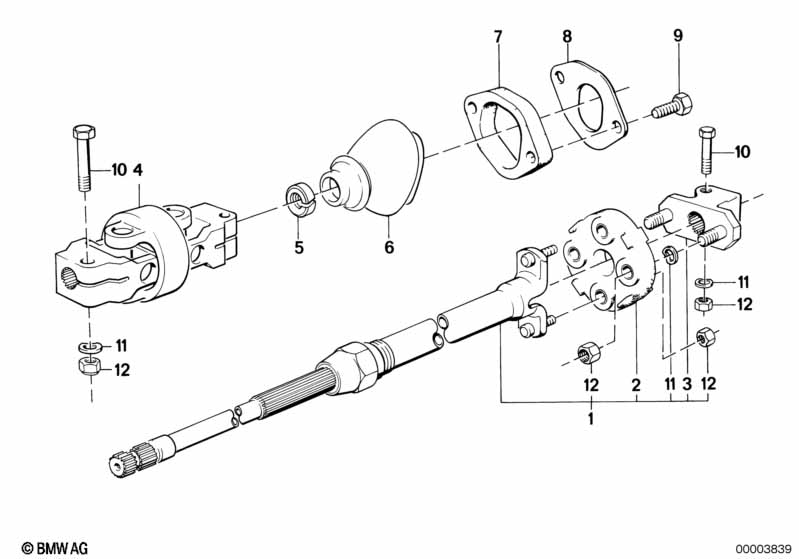

This Steer.col.-lower joint assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | |||||||||
| 01 | Lower joint assy | 1 | 32311156841 | $238.54 | Shop at ECS Tuning | |||||
| 02 | Universal joint | 1 | 32311155522 | $24.05 | Shop at ECS Tuning | |||||
| 03 | Flange | Z=36 | 1 | 32311150426 | $42.73 | ENDED | Shop at ECS Tuning | |||
| 04 | Swivel joint | 1 | 32311156840 | $218.74 | Shop at ECS Tuning | |||||
| 05 | Bush | 1 | 32311157692 | $18.35 | Shop at ECS Tuning | |||||
| 06 | Cup | 1 | 32311156227 | $5.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket | 1 | 32311156226 | $31.91 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket | 1 | 32311156225 | $1.38 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X20-Z3-1 | 2 | 07119915178 | $0.71 | Shop at ECS Tuning | ||||
| 11 | Wave washer | 8,4X15-ZNS3 | 5 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Steer.col.-lower joint assy?
- This technical diagram illustrates the Steer.col.-lower joint assy within the Steering group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Lower joint assy (Part #32311156841).
- Which models use the hardware listed in this Steer.col.-lower joint assy?
- The hardware and components featured in the Steer.col.-lower joint assy are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Lower joint assy (32311156841) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steer.col.-lower joint assy assembly?
- Each item in the Steer.col.-lower joint assy corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Lower joint assy by locating its position on the schematic, which then links to the official BMW part number 32311156841 for the Steering section.
