Steering column-tube/trim panel for BMW 7 Series E32 730i (1994)

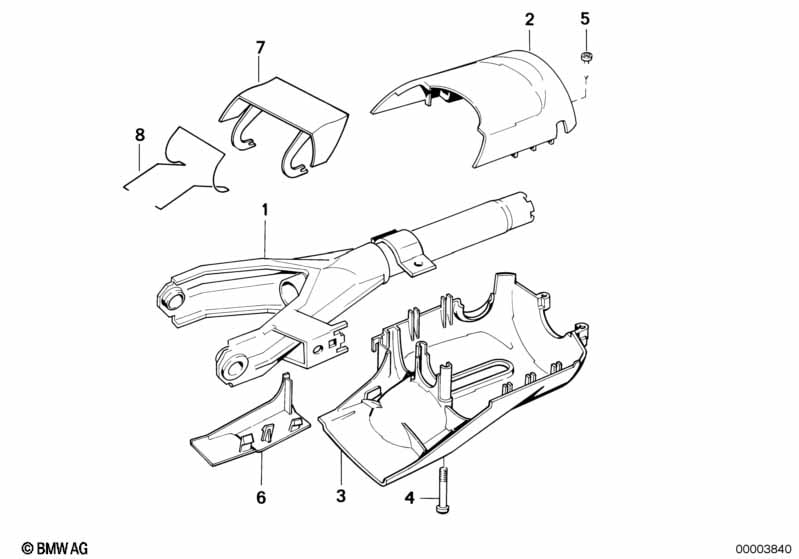

This Steering column-tube/trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering column tube | 1 | 32311156713 | ENDED | Shop at ECS Tuning | |||||
| 02 | Trim panel upper part | 1 | 32311156381 | $82.75 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ring antenna adapter | 1 | 61351093295 | $7.17 | Shop at ECS Tuning | |||||
| -- | Lower trim panel | 1 | 32311157674 | $80.28 | Shop at ECS Tuning | |||||
| For vehicles with electric adjusting |
=Yes |
|||||||||
| 02 | Trim panel upper part | 1 | 32311159439 | $76.30 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ring antenna adapter | 1 | 61351093295 | $7.17 | Shop at ECS Tuning | |||||
| -- | Lower trim panel | 1 | 32311159440 | $80.28 | Shop at ECS Tuning | |||||
| 03 | Lower trim panel | 1 | 32311157674 | $80.28 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ring antenna adapter | 1 | 61351093295 | $7.17 | Shop at ECS Tuning | |||||
| -- | Trim panel upper part | 1 | 32311156381 | $82.75 | Shop at ECS Tuning | |||||
| -- | Cover | 1 | 32311157677 | $25.22 | Shop at ECS Tuning | |||||
| For vehicles with electric adjusting |
=Yes |
|||||||||
| 03 | Lower trim panel | 1 | 32311159440 | $80.28 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ring antenna adapter | 1 | 61351093295 | $7.17 | Shop at ECS Tuning | |||||
| -- | Trim panel upper part | 1 | 32311159439 | $76.30 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M5X35-Z3 | 2 | 07119906833 | $0.24 | Shop at ECS Tuning | ||||
| 04 | Self tapping screw | 5X45 | 2 | 32311158356 | $1.41 | Shop at ECS Tuning | ||||
| For vehicles with electric adjusting |
=Yes |
|||||||||
| 04 | Fillister head screw | M5X12-Z3-ZN | 2 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X35-Z3 | 2 | 07119906833 | $0.24 | Shop at ECS Tuning | ||||
| 05 | Self tapping screw | 5X35 | 2 | 32311158355 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with electric adjusting |
=Yes |
|||||||||
| 05 | Self tapping screw | 5X35 | 2 | 32311158355 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 32311157677 | $25.22 | Shop at ECS Tuning | |||||
| For vehicles with electric adjusting |
=Yes |
|||||||||
| 06 | Cover | 1 | 32311159441 | $33.48 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 32311160879 | $22.83 | Shop at ECS Tuning | |||||
| 08 | Spring | 1 | 32311160652 | $12.02 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Steering column-tube/trim panel?
- This technical diagram illustrates the Steering column-tube/trim panel within the Steering group for the 7 Series E32 730i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Steering column tube (Part #32311156713).
- Which models use the hardware listed in this Steering column-tube/trim panel?
- The hardware and components featured in the Steering column-tube/trim panel are specific to the 7 Series E32 730i produced during 1994. These technical specifications ensure that parts like the Steering column tube (32311156713) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-tube/trim panel assembly?
- Each item in the Steering column-tube/trim panel corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Steering column tube by locating its position on the schematic, which then links to the official BMW part number 32311156713 for the Steering section.
