Steering column-adjustable/single parts for BMW 5 Series E34 525i (1995)

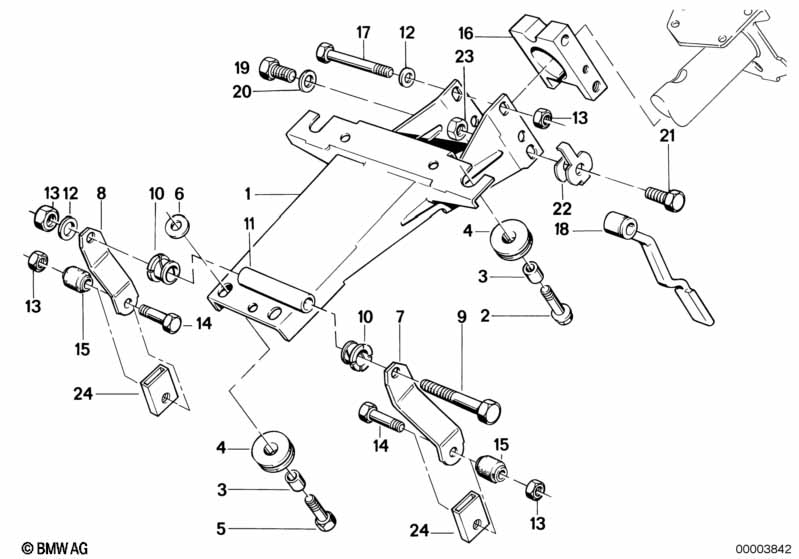

This Steering column-adjustable/single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 32311157610 | $21.87 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M8X20-Z3-2 | 2 | 07119915159 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spacer tube | 3 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 04 | Guide bush | 3 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 05 | Fracture bolt | M8X28 9.8 | 2 | 32311158528 | $1.83 | Shop at ECS Tuning | ||||
| 06 | Washer | 2 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lever left | 1 | 32311157381 | $6.52 | ENDED | Shop at ECS Tuning | ||||
| 08 | Lever right | 1 | 32311157382 | $6.65 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| 10 | Bushing | 2 | 32311153860 | $0.70 | Shop at ECS Tuning | |||||
| 11 | Spacer sleeve | 1 | 32301154350 | $2.27 | ENDED | Shop at ECS Tuning | ||||
| 12 | Circlip | 8,4 | 2 | 07119935033 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Rubber Mounting | 2 | 32311109031 | $11.56 | Shop at ECS Tuning | |||||
| 16 | Clamping | 1 | 32311156930 | $24.02 | Shop at ECS Tuning | |||||
| 17 | Hexagon bolt | M8X65 | 1 | 07119903018 | Shop at ECS Tuning | |||||
| 18 | Lever | 1 | 32311156934 | $7.78 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M8X22 LINKS | 1 | 32311156933 | $0.75 | Shop at ECS Tuning | ||||
| 20 | Circlip | 8,4 | 1 | 07119935033 | ENDED | Shop at ECS Tuning | ||||
| 20 | Securing plate, left | 1 | 32311159445 | $0.80 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M8X28-ZN | 1 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 22 | Securing plate | 1 | 32311156932 | $0.30 | Shop at ECS Tuning | |||||
| 23 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 24 | Cap | 2 | 32311159322 | $0.55 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
