Steering lock/ignition switch for BMW 5 Series E12 520 (1976)

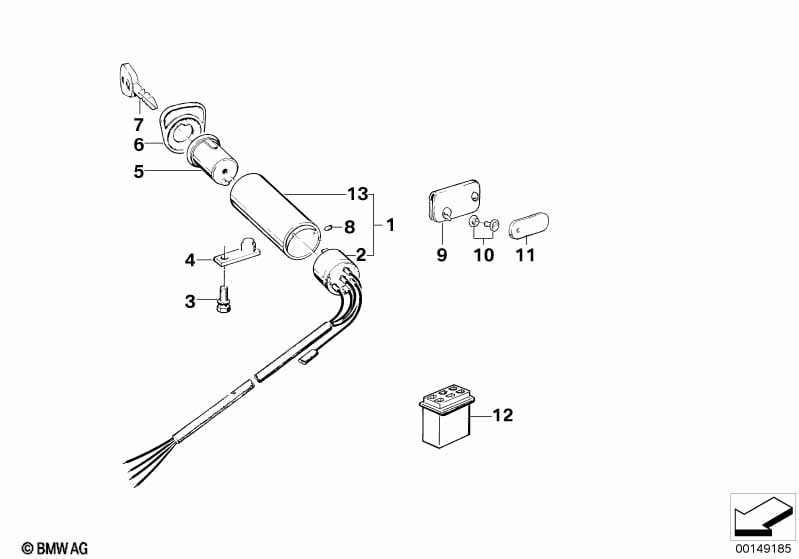

This Steering lock/ignition switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering lock | 1 | 32321110084 | $138.38 | ENDED | Shop at ECS Tuning | ||||
| 02 | Ignition switch | 1 | 61321355701 | $178.05 | Shop at ECS Tuning | |||||
| 03 | Fracture bolt | 1 | 32311157967 | $1.64 | Shop at ECS Tuning | |||||
| 04 | Plate | 1 | 32321113713 | $48.76 | Shop at ECS Tuning | |||||
| 05 | Lock cylinder with key | 1 | 32321108976 | $49.29 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lock (with key code) | BIS 10.000 | 1 | 32321110016 | $65.42 | ENDED | Shop at ECS Tuning | |||
| 05 | Lock (with key code) | 10.001-19.999 | 1 | 32329069306 | $65.42 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 32321108979 | $0.36 | ENDED | Shop at ECS Tuning | ||||
| 08 | Grub screw | M3X5 | 1 | 07119904210 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| 10 | Lock | 1 | 32311119305 | ENDED | Shop at ECS Tuning | |||||
| 11 | Key label | 1 | 32321119188 | ENDED | Shop at ECS Tuning | |||||
| 12 | Plug housing | 1 | 61131350625 | $7.17 | Shop at ECS Tuning | |||||
| 13 | Housing for steering wheel lock | 1 | 32321120577 | $81.39 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
