Steering column-adjustable/single parts for BMW 5 Series E34 525td (1995)

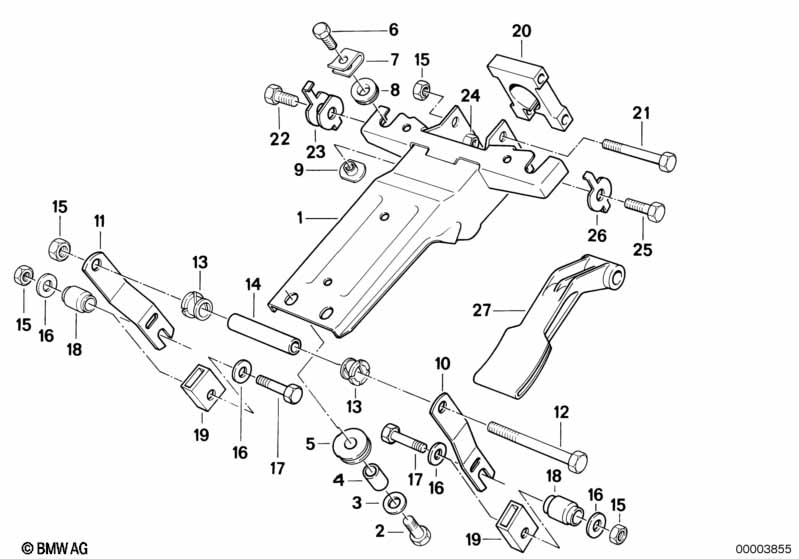

This Steering column-adjustable/single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | |||||||||
| 01 | Supporting bracket | 1 | 09/1990 | 32311159966 | $32.37 | Shop at ECS Tuning | ||||
| 02 | Fracture bolt | M8X28 9.8 | 2 | 09/1990 | 32311158528 | $1.83 | Shop at ECS Tuning | |||
| 04 | Spacer tube | 4 | 09/1990 | 32311111186 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Guide bush | 4 | 09/1990 | 32311093601 | $0.48 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X20-Z3-2 | 2 | 09/1990 | 07119915078 | $0.54 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M8X20-Z3-2 | 2 | 09/1990 | 07119915159 | ENDED | Shop at ECS Tuning | |||
| 10 | Lever left | 1 | 09/1990 | 32311157381 | $6.52 | ENDED | Shop at ECS Tuning | |||
| 11 | Lever right | 1 | 09/1990 | 32311157382 | $6.65 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M8X110-8.8 | 1 | 09/1990 | 07119906728 | Shop at ECS Tuning | ||||
| 13 | Bushing | 2 | 09/1990 | 32311153860 | $0.70 | Shop at ECS Tuning | ||||
| 14 | Spacer sleeve | 1 | 09/1990 | 32301154350 | $2.27 | ENDED | Shop at ECS Tuning | |||
| 15 | Self-locking hex nut | M8 | 4 | 09/1990 | 07129922716 | $0.36 | Shop at ECS Tuning | |||
| 16 | Washer | A8,4X25 | 4 | 09/1990 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 17 | Hex bolt | M8X40-ZNNIV SI | 2 | 09/1990 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 18 | Rubber Mounting | 2 | 09/1990 | 32311109031 | $11.56 | Shop at ECS Tuning | ||||
| 19 | Cap | 2 | 09/1990 | 32311156884 | $0.55 | Shop at ECS Tuning | ||||
| 20 | Clamping | 1 | 09/1990 | 32311158445 | $24.02 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M8X90-8.8-ZNS | 1 | 09/1990 | 07119912471 | $2.80 | Shop at ECS Tuning | |||
| 22 | Hex bolt | M8X2X40 | 1 | 09/1990 | 32311158443 | $4.88 | Shop at ECS Tuning | |||
| 23 | Securing plate, right | 1 | 09/1990 | 32311158447 | $0.80 | Shop at ECS Tuning | ||||
| 24 | Hex nut | M8X2 | 1 | 09/1990 | 32311158490 | $0.59 | ENDED | Shop at ECS Tuning | ||
| 25 | Hex bolt | M8X2X32 LINKS | 1 | 09/1990 | 32311158442 | $4.23 | Shop at ECS Tuning | |||
| 26 | Securing plate, left | 1 | 09/1990 | 32311159445 | $0.80 | Shop at ECS Tuning | ||||
| 27 | Lever | 1 | 09/1990 | 32311158444 | $22.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
