Steering wheel for BMW 3 Series E21 320 (1979)

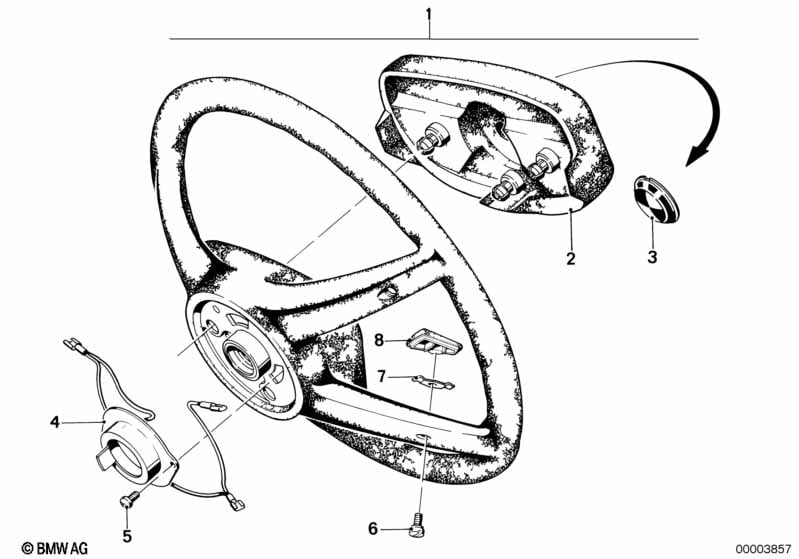

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel, foam plastic | D=380MM | 1 | 32331118777 | $219.85 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather steering wheel | D=380MM | 1 | 32331121914 | ENDED | Shop at ECS Tuning | ||||
| 03 | Badge | 1 | 09/1976 | 32331117279 | $7.32 | Shop at ECS Tuning | ||||
| 04 | Slip ring | 1 | 09/1976 | 32331118809 | $14.92 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head screw | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
| 07 | contact spring | KS | 4 | 32331118903 | $1.39 | Shop at ECS Tuning | ||||
| 07 | contact spring | 4 | 32331150830 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 08 | Horn pad | KS | 4 | 01/1977 | 32331118902 | $2.12 | Shop at ECS Tuning | |||
| 08 | Horn pad | PETRI | 4 | 01/1977 | 32331119835 | $1.70 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
