Sports steering wheel for BMW 5 Series E28 528e (1987)

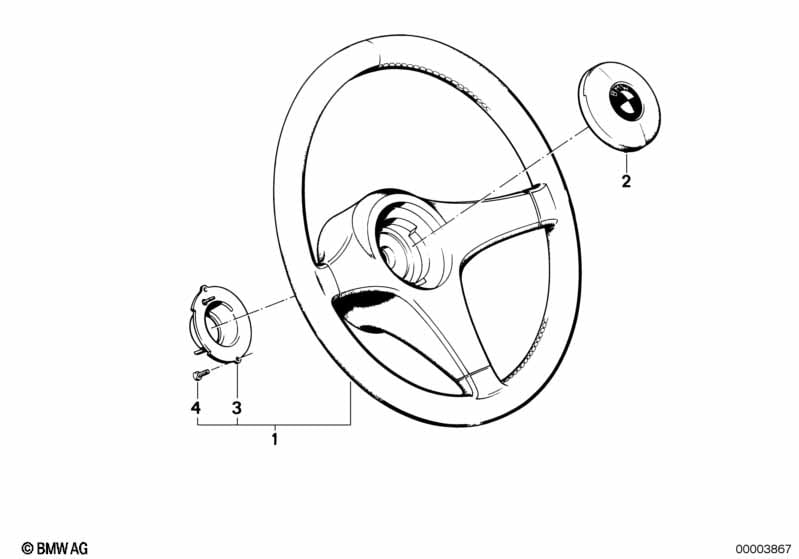

This Sports steering wheel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sports steering wheel | D=385MM | 1 | 09/1985 | 32311155859 | $304.95 | ENDED, ABE 9786158 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Horn button | 1 | 09/1985 | 32331157897 | $38.19 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn button | 1 | 32331157897 | $38.19 | ENDED | Shop at ECS Tuning | ||||

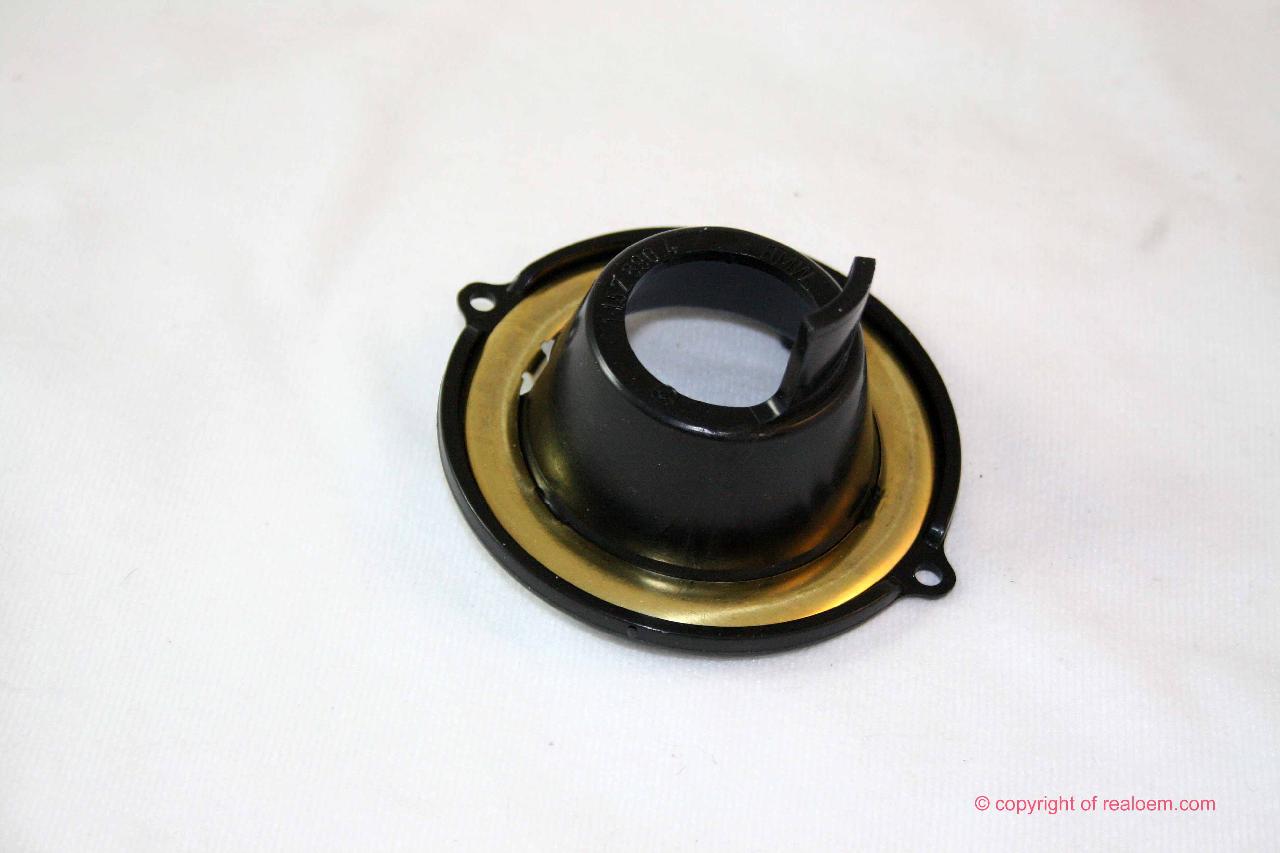

| 03 | Slip ring | 1 | 09/1985 | 32331152896 | $10.25 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
