Sports steering wheel M-technik for BMW 3 Series E30 325e (1987)

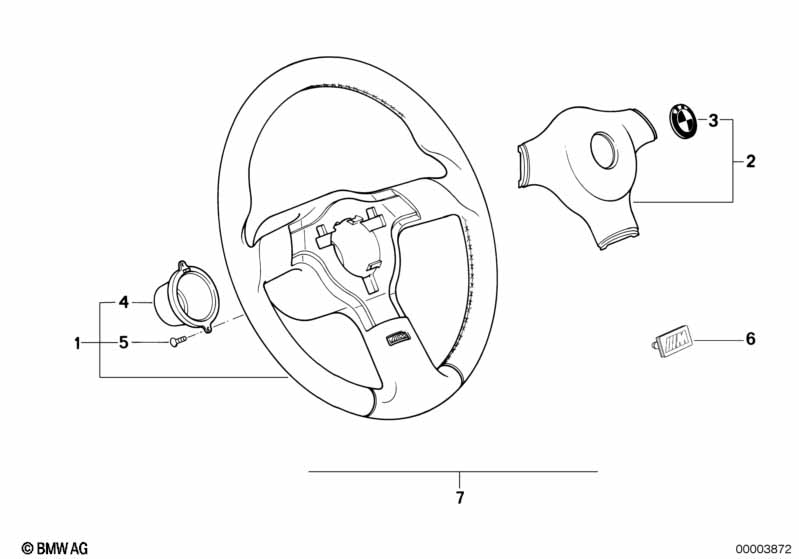

This Sports steering wheel M-technik technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sports steering wheel M-technik schwarz | D=370MM | 1 | 32332226086 | $403.31 | ENDED, ABE 9784859 | Shop at ECS Tuning | |||
| 02 | Horn button schwarz | 1 | 32332226656 | $72.53 | ENDED | Shop at ECS Tuning | ||||
| 03 | Badge | 1 | 32331117279 | $7.32 | Shop at ECS Tuning | |||||
| 04 | Slip ring | 1 | 32331152896 | $10.25 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
| 06 | Badge | 1 | 32332226479 | $12.12 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Sports steering wheel M-technik?
- This technical diagram illustrates the Sports steering wheel M-technik within the Steering group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Sports steering wheel M-technik schwarz (Part #32332226086).
- Which models use the hardware listed in this Sports steering wheel M-technik?
- The hardware and components featured in the Sports steering wheel M-technik are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Sports steering wheel M-technik schwarz (32332226086) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sports steering wheel M-technik assembly?
- Each item in the Sports steering wheel M-technik corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Sports steering wheel M-technik schwarz by locating its position on the schematic, which then links to the official BMW part number 32332226086 for the Steering section.
