Oil carrier / Single parts for BMW 3 Series E30 325i (1993)

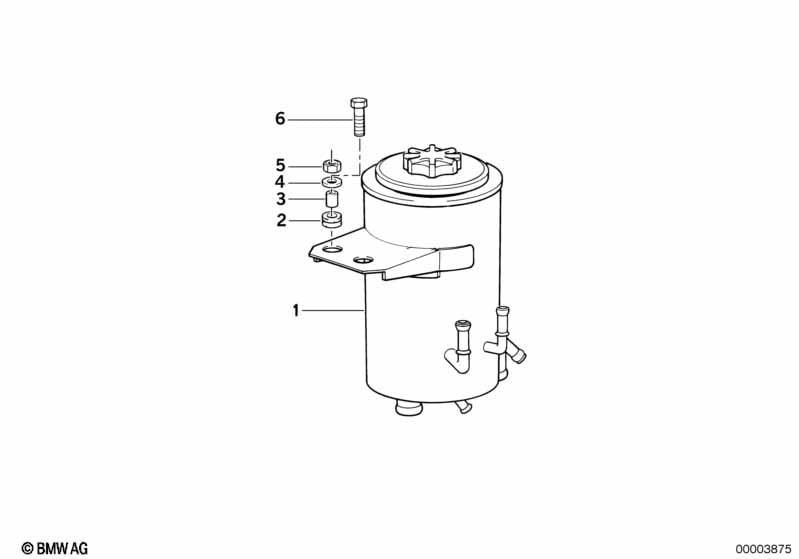

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO LEVELLING SYSTEM | |||||||||
| 01 | Oil carrier | BELLINO | 1 | 32411137940 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber grommet | 2 | 37211119643 | $1.45 | Shop at ECS Tuning | |||||
| 03 | Spacer bush | 12MM | 2 | 37211119062 | $3.37 | Shop at ECS Tuning | ||||
| 04 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
