Oil carrier levelling device/singl.parts for BMW 7 Series E32 750iLS (1994)

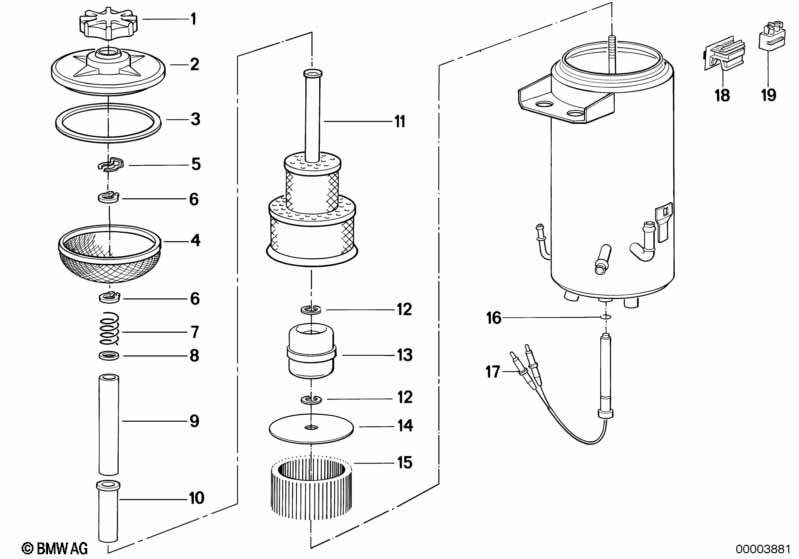

This Oil carrier levelling device/singl.parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SINGLE COMPONENTS FOR | |||||||||
| 01 | Cap | 1 | 32411128923 | $7.33 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 32411134842 | $19.00 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 32411134843 | $2.93 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Oil strainer | 1 | 32411134844 | $44.07 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Securing plate | 1 | 32411134845 | $1.67 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 07 | Compression spring | 1 | 32411138010 | $1.38 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 09 | Spacer tube | 1 | 32411135687 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 10 | Stopper | 1 | 32411135688 | $2.68 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 11 | Oil strainer | 1 | 32411136304 | $132.64 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 12 | Securing plate | 2 | 32411134846 | $1.88 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 13 | Float | 1 | 32411134847 | $33.62 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover | 1 | 32411134848 | $5.23 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 15 | Filter cartridge | 1 | 32411128167 | $14.57 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 16 | Snap ring | 1 | 32411134850 | $0.53 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 17 | Contact | 1 | 32411134851 | $36.16 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 18 | Holder | 1 | 61131382162 | $1.28 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
| 19 | Wiring set | 1 | 61121382263 | $19.05 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411136331 | $213.11 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
