Steering wheel for BMW 3 Series E36 318i (1996)

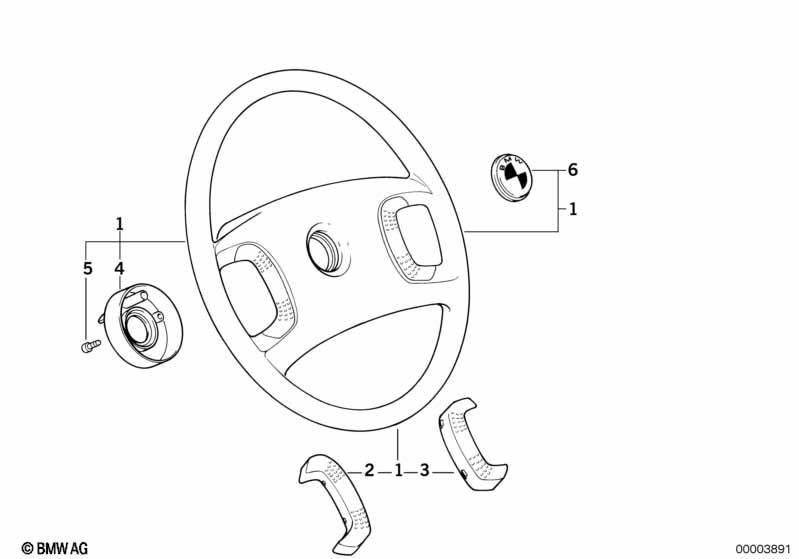

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel | D=385MM | 1 | 32331159225 | $435.95 | Shop at ECS Tuning | ||||
| 01 | Steering wheel | 1 | 32331161382 | Shop at ECS Tuning | ||||||
| 02 | Horn pad, left | 1 | 32331160270 | $12.02 | Shop at ECS Tuning | |||||
| 03 | Horn pad, right | 1 | 32331160271 | $12.02 | ENDED | Shop at ECS Tuning | ||||
| 04 | Slip ring | 1 | 32311159065 | $9.28 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M3,5X8 | 3 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
| 06 | Badge | 1 | 32331117279 | $7.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Steering wheel?
- This technical diagram illustrates the Steering wheel within the Steering group for the 3 Series E36 318i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Steering wheel (Part #32331159225).
- Which models use the hardware listed in this Steering wheel?
- The hardware and components featured in the Steering wheel are specific to the 3 Series E36 318i produced during 1996. These technical specifications ensure that parts like the Steering wheel (32331159225) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering wheel assembly?
- Each item in the Steering wheel corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Steering wheel by locating its position on the schematic, which then links to the official BMW part number 32331159225 for the Steering section.
