Hydro steering-installation kit for BMW 3 Series E36 316i (1994)

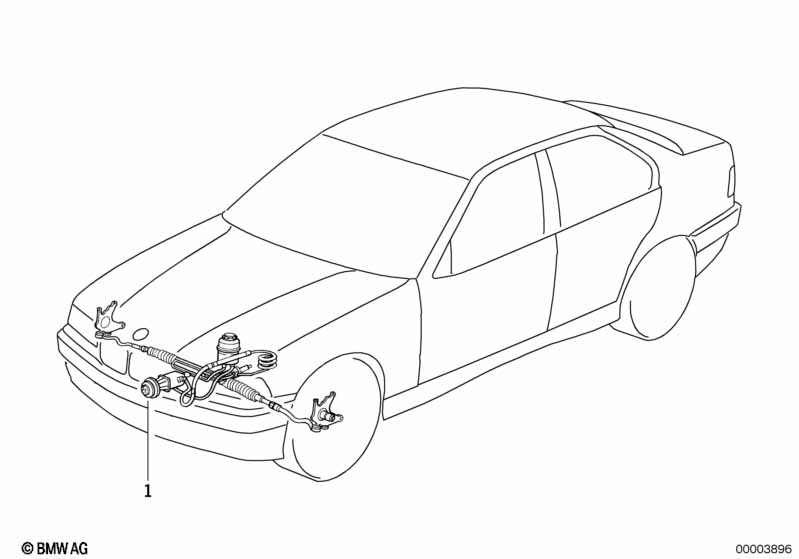

This Hydro steering-installation kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set hydro steering | 1 | 10/1991 | 32411138220 | ENDED, TÜV 9785028 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clip | 2 | 10/1991 | 34111163801 | $7.52 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
