Hydro steering-oil pipes for BMW 8 Series E31 850Ci (1994)

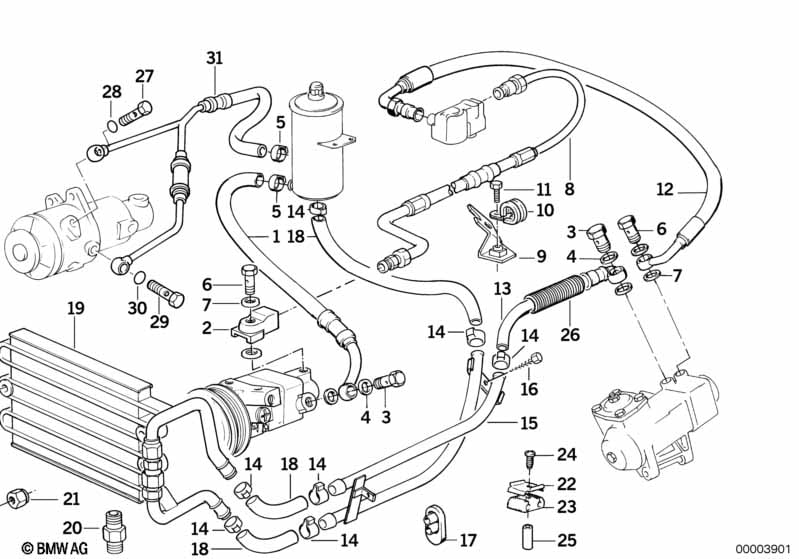

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 32411137554 | $41.24 | Shop at ECS Tuning | |||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 01 | Intake manifold | 1 | 32411137560 | $41.24 | Shop at ECS Tuning | |||||
| 02 | Intermediate piece | 2 | 32411137455 | $54.43 | Shop at ECS Tuning | |||||
| 03 | Hollow bolt | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | D=20,9-24,1 | 1 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 06 | Hollow bolt | M14X1,5X26 | 2 | 32416852469 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | A14X20-CUSN | 4 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Pressure hose assy | 1 | 32411140039 | $229.83 | Shop at ECS Tuning | |||||
| For vehicles with ASC+T |
=Yes |
|||||||||
| 08 | Pressure hose assy | 1 | 32411139578 | $229.83 | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 32411134318 | $4.84 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | D=10/6,4 | 2 | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Pressure hose assy | 1 | 32411139579 | $192.00 | Shop at ECS Tuning | |||||
| 13 | Return pipe | 1 | 32411137556 | $41.26 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | D=16,6-20MM | 7 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 15 | Pipe | 1 | 32411138479 | $124.30 | Shop at ECS Tuning | |||||
| 16 | Hex head screw | ST6,3X16-C-Z1 | 3 | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 17 | Rubber grommet | 1 | 32411137624 | $3.78 | Shop at ECS Tuning | |||||
| 18 | Hose | 12X18MM | X | 32411131524 | $35.95 | Shop at ECS Tuning | ||||
| 19 | Oil cooler | 1 | 32411140472 | $448.31 | Shop at ECS Tuning | |||||
| 21 | Self-locking hex nut | M6-10 ZN | 3 | 10/1996 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 21 | Self-locking hex nut | M6 ZNNIV SI | 3 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
