Oil carrier ASC+T/single parts for BMW 7 Series E32 750i (1994)

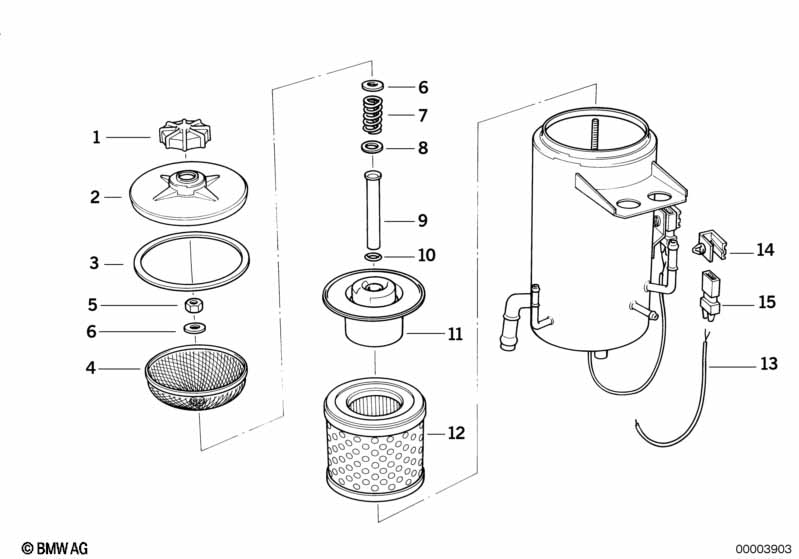

This Oil carrier ASC+T/single parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SINGLE COMPONENTS FOR | |||||||||
| 01 | Cap | PENTOS.CHF 11.S | 1 | 09/1991 | 32411141027 | $8.68 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 09/1991 | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | 1 | 32411134842 | $19.00 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 32411134843 | $2.93 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 06 | Oil strainer | 1 | 32411134844 | $44.07 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 07 | Compression spring | 1 | 32411138010 | $1.38 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 09 | Spacer tube | 1 | 32411138009 | $11.61 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 10 | O-ring | 1 | 32411138008 | $3.39 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 11 | Float | 1 | 32411138007 | $51.13 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 12 | Filter cartridge | 1 | 32411137788 | $117.59 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 13 | Contact | 1 | 32411134851 | $36.16 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 14 | Holder | 1 | 61131382162 | $1.28 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
| 15 | Wiring set | 1 | 61121382263 | $19.05 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 32411139199 | $602.85 | ENDED | Shop at ECS Tuning | |||
