Steering column-bearing sup./single part for BMW 5 Series E34 525ix (1996)

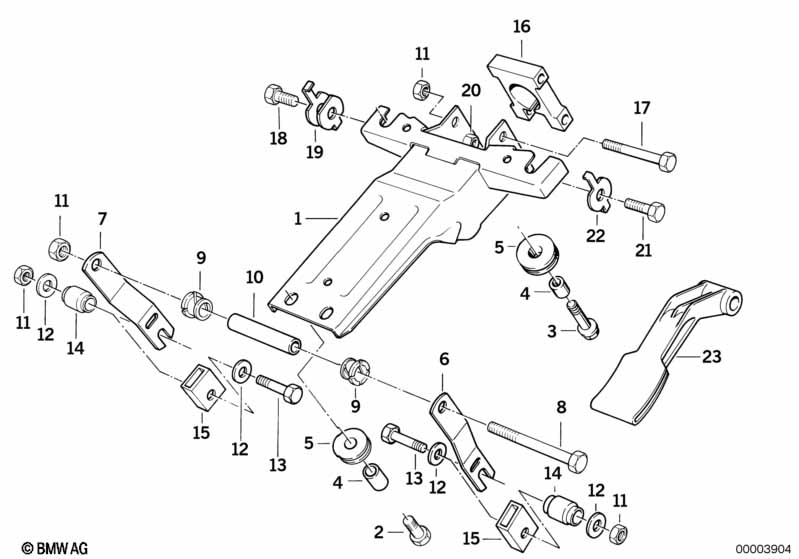

This Steering column-bearing sup./single part technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | |||||||||
| 01 | Supporting bracket | 1 | 32311159966 | $32.37 | Shop at ECS Tuning | |||||
| 02 | Fracture bolt | M8X28 9.8 | 1 | 32311158528 | $1.83 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X20-Z3-2 | 2 | 07119915159 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spacer tube | 3 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 05 | Guide bush | 3 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Lever left | 1 | 32311157647 | $5.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lever right | 1 | 32311157648 | $5.25 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| 09 | Bushing | 2 | 32311153860 | $0.70 | Shop at ECS Tuning | |||||
| 10 | Spacer sleeve | 1 | 32301154350 | $2.27 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | A8,4X25 | 4 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X40-ZNNIV SI | 2 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Rubber Mounting | 2 | 32311109031 | $11.56 | Shop at ECS Tuning | |||||
| 15 | Cap | 2 | 32311159322 | $0.55 | Shop at ECS Tuning | |||||
| 16 | Clamping | 1 | 32311158445 | $24.02 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M8X90-8.8-ZNS | 1 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X2X40 | 1 | 32311158443 | $4.88 | Shop at ECS Tuning | ||||
| 19 | Securing plate, right | 1 | 32311158447 | $0.80 | Shop at ECS Tuning | |||||
| 20 | Hex nut | M8X2 | 1 | 32311158490 | $0.59 | ENDED | Shop at ECS Tuning | |||
| 21 | Hex bolt | M8X2X32 LINKS | 1 | 32311158442 | $4.23 | Shop at ECS Tuning | ||||
| 22 | Securing plate, left | 1 | 32311159445 | $0.80 | Shop at ECS Tuning | |||||
| 23 | Lever | 1 | 32311158444 | $22.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525ix Steering column-bearing sup./single part?
- This technical diagram illustrates the Steering column-bearing sup./single part within the Steering group for the 5 Series E34 525ix produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #32311159966).
- Which models use the hardware listed in this Steering column-bearing sup./single part?
- The hardware and components featured in the Steering column-bearing sup./single part are specific to the 5 Series E34 525ix produced during 1996. These technical specifications ensure that parts like the Supporting bracket (32311159966) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column-bearing sup./single part assembly?
- Each item in the Steering column-bearing sup./single part corresponds to the numbered list below the illustration. For the 5 Series E34 525ix, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 32311159966 for the Steering section.
