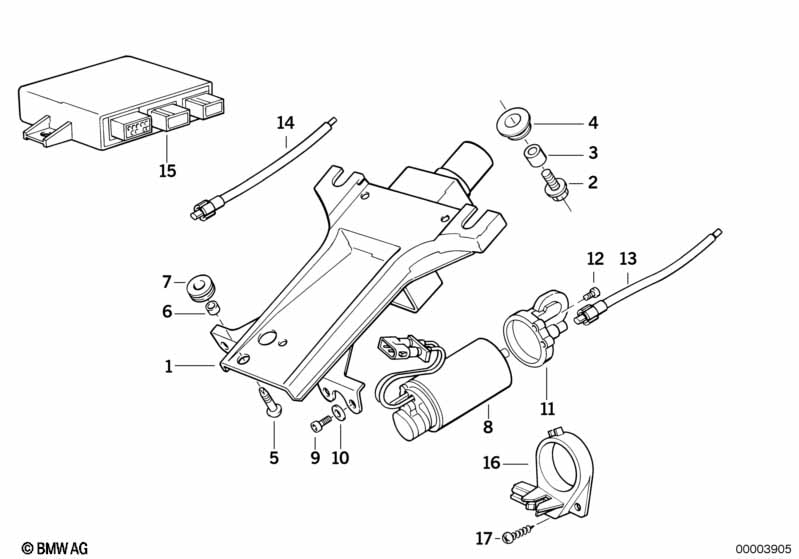

Steering column-elec.adjust./singl.parts for BMW 5 Series E34 525i (1995)
This Steering column-elec.adjust./singl.parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ELECTRIC ADJUSTING only applies to airbag |
|||||||||
| 01 | Steering column tube | 1 | 32311093328 | $555.75 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X20-Z3-2 | 2 | 07119915078 | $0.54 | Shop at ECS Tuning | ||||
| 03 | Spacer tube | 3 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 04 | Guide bush | 2 | 32311157975 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fracture bolt | M8X28 9.8 | 1 | 32311158528 | $1.83 | Shop at ECS Tuning | ||||
| 07 | Guide bush | 1 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 08 | Transmission steering column adjusting | 1 | 32311161381 | $302.81 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Voltage regulator | 1 | 61318356185 | $141.42 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M5X25-10.9-ZNS3 | 2 | 07119904498 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 11 | Voltage regulator | 1 | 03/1991 | 61318356185 | $141.42 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | M2,5X10 | 2 | 03/1991 | 07119906429 | $1.39 | Shop at ECS Tuning | |||
| 13 | Shaft longitudinal adjusting | 1 | 32311159013 | $18.17 | Shop at ECS Tuning | |||||
| 15 | Steering column control unit | 1 | 32311160011 | $592.89 | Shop at ECS Tuning | |||||
| 16 | Supporting ring | 1 | 32311161219 | ENDED | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | 4X10 | 1 | 64111386955 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
