Power steering for BMW 5 Series E34 540i (1995)

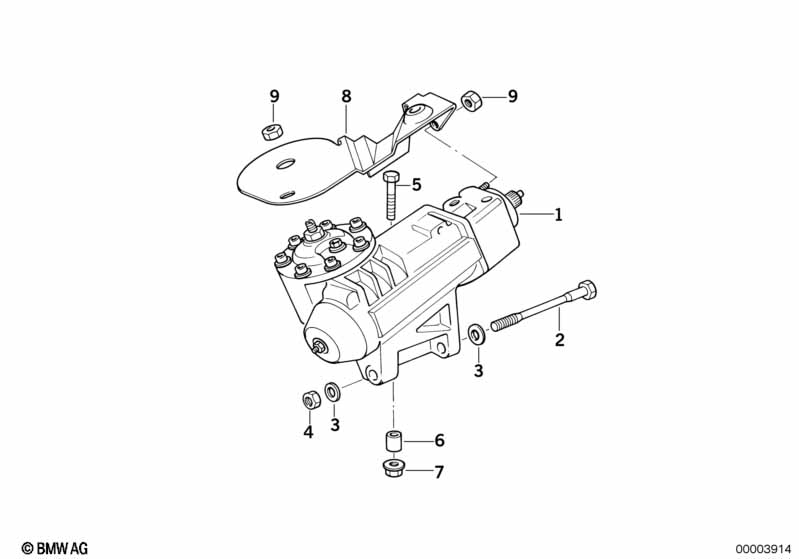

This Power steering technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP hydraulic steering gear | ZF | 1 | 32131139285 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP REMAN hydraulic steering gear | ZF | 1 | 32131139681 | $1537.29 | ENDED | Shop at ECS Tuning | |||
| 02 | Fit bolt | 1 | 32131136051 | $5.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M12X1,5 | 1 | 32101136023 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X90 | 1 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 06 | Bush | 1 | 32101134058 | $11.20 | ENDED | Shop at ECS Tuning | ||||
| 07 | Self-locking hex nut | M10 | 1 | 32101133077 | $2.50 | ENDED | Shop at ECS Tuning | |||
| 08 | Heat resistant plate | 1 | 32131140938 | $17.92 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Power steering?
- This technical diagram illustrates the Power steering within the Steering group for the 5 Series E34 540i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the RP hydraulic steering gear (Part #32131139285).
- Which models use the hardware listed in this Power steering?
- The hardware and components featured in the Power steering are specific to the 5 Series E34 540i produced during 1995. These technical specifications ensure that parts like the RP hydraulic steering gear (32131139285) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering assembly?
- Each item in the Power steering corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the RP hydraulic steering gear by locating its position on the schematic, which then links to the official BMW part number 32131139285 for the Steering section.
