Hydro steering-oil pipes for BMW 5 Series E34 525ix (1996)

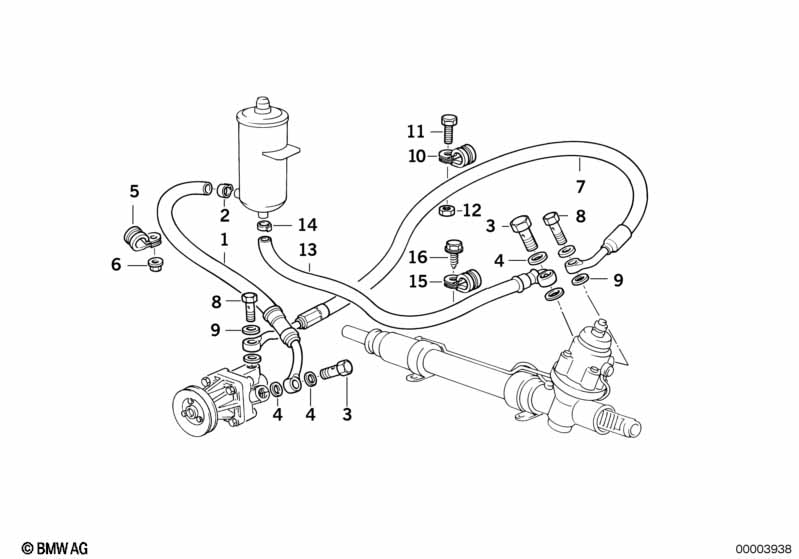

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 09/1993 | 32411139447 | $41.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Hose clamp | D=20,9-24,1 | 1 | 09/1993 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| 03 | Hollow bolt | M16X28 | 2 | 09/1993 | 32416852470 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A16X22-CUSN | 4 | 09/1993 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 05 | Clamp | D=23/6,4 | 1 | 09/1993 | 12521270936 | $1.77 | Shop at ECS Tuning | |||
| 06 | Plastic nut for coarse threaded pin | M6 | 1 | 09/1993 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 07 | Pressure hose assy | 1 | 09/1993 | 32411141220 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hollow bolt | M14X1,5X26 | 2 | 09/1993 | 32416852469 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A14X20-CUSN | 4 | 09/1993 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 10 | Clamp | D=10/6,4 | 1 | 09/1993 | 12141305028 | $1.58 | Shop at ECS Tuning | |||
| 11 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 09/1993 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 12 | Hex nut | M6-8-ZNNIV SI | 1 | 09/1993 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 13 | Return pipe | 1 | 09/1993 | 32411141651 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hose clamp | D=16,6-20MM | 1 | 09/1993 | 16121180242 | $1.08 | Shop at ECS Tuning | |||
| 15 | Clamp | D=13/6,4 | 1 | 09/1993 | 12427840405 | $1.52 | Shop at ECS Tuning | |||
| 16 | Sheet metal screw | M6X14 | 1 | 09/1993 | 31121132176 | $0.58 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 17 | Holder | 1 | 09/1993 | 32411091807 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hose | 12X18MM | X | 09/1993 | 32411131524 | $35.95 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
