M technic steering wheel airbag for BMW 3 Series E36 328i (1999)

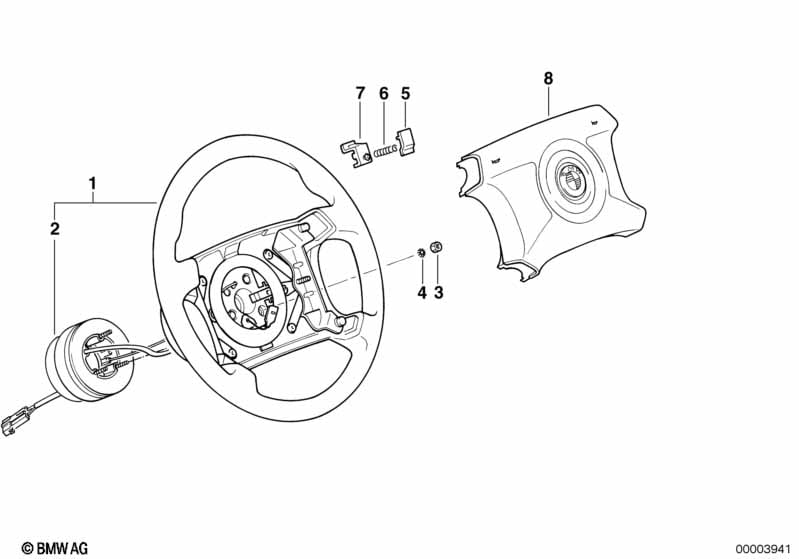

This M technic steering wheel airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Slip ring | 1 | 09/1993 | 32341162804 | $203.22 | ENDED | Shop at ECS Tuning | |||
| 04 | Tooth washer | J2,7 | 3 | 09/1993 | 07119936021 | $0.11 | Shop at ECS Tuning | |||
| 05 | Thrust adapter | 1 | 09/1993 | 32341160859 | $2.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Locking spring | 1 | 09/1993 | 32341160110 | $1.80 | Shop at ECS Tuning | ||||
| 07 | Locking mechanism | WEIß | 1 | 09/1993 | 32341161875 | $2.63 | Shop at ECS Tuning | |||
| 08 | Hub cap, airbag | 1 | 09/1993 | 32342228015 | $696.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i M technic steering wheel airbag?
- This technical diagram illustrates the M technic steering wheel airbag within the Steering group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Slip ring (Part #32341162804).
- Which models use the hardware listed in this M technic steering wheel airbag?
- The hardware and components featured in the M technic steering wheel airbag are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Slip ring (32341162804) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M technic steering wheel airbag assembly?
- Each item in the M technic steering wheel airbag corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Slip ring by locating its position on the schematic, which then links to the official BMW part number 32341162804 for the Steering section.
