Aggregate support/mounting for BMW 7 Series E38 750i (2001)

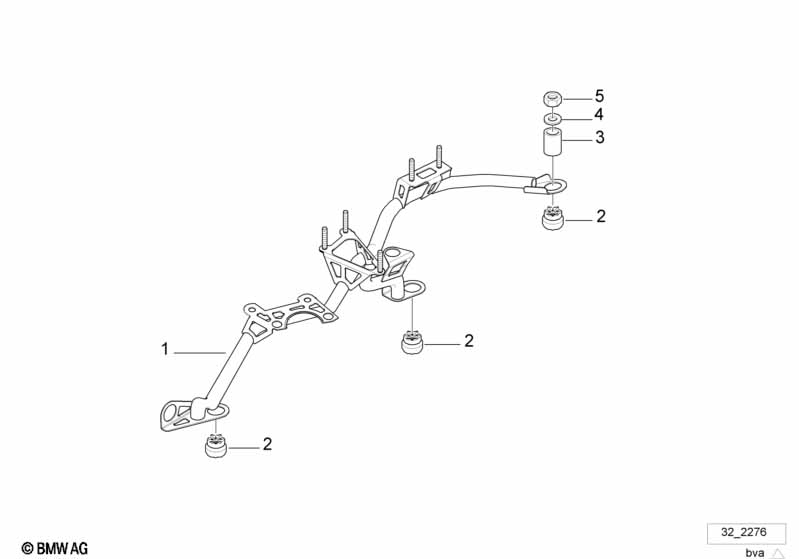

This Aggregate support/mounting technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aggregate support | 1 | 32411141973 | $59.78 | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 03 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 04 | Washer | 6,4X25X1,5 | 1 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 750i Aggregate support/mounting?
- This technical diagram illustrates the Aggregate support/mounting within the Steering group for the 7 Series E38 750i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Aggregate support (Part #32411141973).
- Which models use the hardware listed in this Aggregate support/mounting?
- The hardware and components featured in the Aggregate support/mounting are specific to the 7 Series E38 750i produced during 2001. These technical specifications ensure that parts like the Aggregate support (32411141973) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Aggregate support/mounting assembly?
- Each item in the Aggregate support/mounting corresponds to the numbered list below the illustration. For the 7 Series E38 750i, you can identify the Aggregate support by locating its position on the schematic, which then links to the official BMW part number 32411141973 for the Steering section.
