Hydro steering-oil pipes for BMW 7 Series E38 L7 (1998)

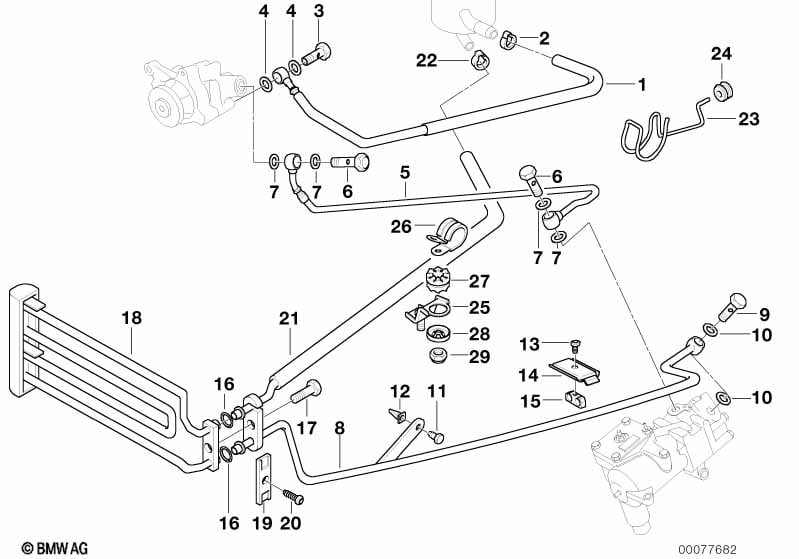

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 09/1998 | 32411141853 | $41.83 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | D=20,9-24,1 | 1 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 03 | Hollow bolt | M18X32 | 1 | 32411117183 | $7.53 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | A18X24-CUSN | 2 | 32411093598 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Pressure hose assy | RHD | 1 | 09/1998 | 32411092127 | $248.75 | Shop at ECS Tuning | |||
| 06 | Hollow bolt | M14X1,5X26 | 2 | 32416852469 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | A14X20-CUSN | 4 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 08 | Return pipe | 1 | 32411093652 | $108.07 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | 1 | 52531451393 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 14 | Support pressure hose assy left | 1 | 09/1998 | 32411095318 | $12.23 | Shop at ECS Tuning | ||||
| 16 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 17 | Screw | M8X28-Z3 | 1 | 06/2000 | 17227555715 | $0.78 | Shop at ECS Tuning | |||
| 17 | Hex bolt with washer | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Cooling coil | 1 | 32411141286 | $126.26 | ENDED | Shop at ECS Tuning | ||||
| 19 | Adjusting bar | 1 | 17111704451 | $5.52 | Shop at ECS Tuning | |||||
| 20 | Self tapping screw | 6X25 | 1 | 17111728723 | $1.05 | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 21 | radiator return line | 1 | 32411091976 | $41.26 | Shop at ECS Tuning | |||||
| 22 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
