Manually adjust. steering column for BMW 7 Series E38 735i (1998)

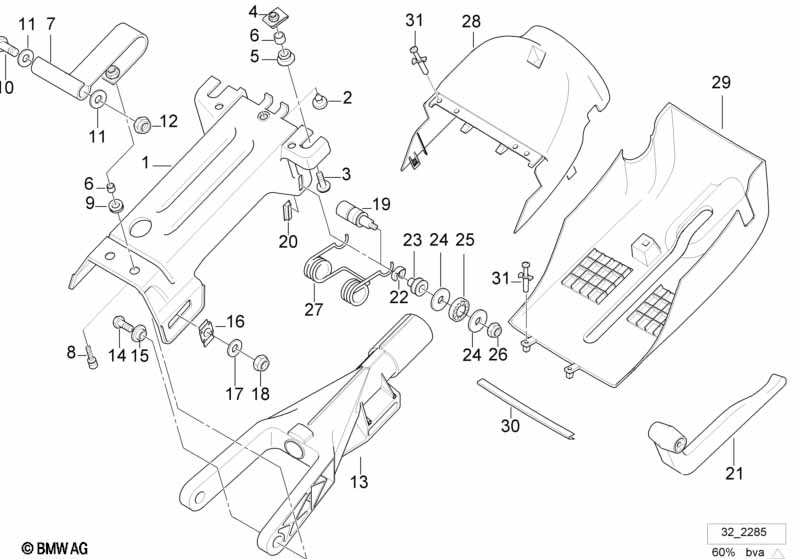

This Manually adjust. steering column technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 32311093704 | $35.71 | Shop at ECS Tuning | |||||
| 02 | Clutch pedal stop buffer | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M8X28-ZN | 2 | 07119913659 | $0.47 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Fixing clamp | 2 | 32311161657 | $2.95 | Shop at ECS Tuning | |||||
| 05 | Guide bush | 2 | 32311095720 | $0.29 | Shop at ECS Tuning | |||||
| 06 | Spacer tube | 3 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 07 | Steering column bracket | 1 | 32311090227 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fracture bolt | 1 | 32311093570 | $1.83 | Shop at ECS Tuning | |||||
| 09 | Guide bush | 1 | 32311111185 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X90-8.8-ZNS | 1 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Steering column tube | 1 | 32311093513 | $55.52 | +core | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 15 | Sleeve | L=5,25MM | 2 | 32311161899 | $0.75 | Shop at ECS Tuning | ||||
| 16 | Guide | 4 | 32301094925 | $0.17 | Shop at ECS Tuning | |||||
| 17 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Self-locking hex nut | 2 | 32311092337 | $0.17 | Shop at ECS Tuning | |||||
| 19 | Clamping device f steering column adjust | 1 | 32301162617 | $24.27 | Shop at ECS Tuning | |||||
| 20 | Bush | 2 | 32301093514 | $1.40 | Shop at ECS Tuning | |||||
| 21 | Adjust-lever | 1 | 32311162641 | $8.83 | Shop at ECS Tuning | |||||
| 22 | Circlip | D8,0 | 1 | 07129934208 | $0.87 | Shop at ECS Tuning | ||||
| 23 | Bush | 1 | 32301092775 | Shop at ECS Tuning | ||||||
| 25 | Grooved ball bearing | 16,0X8,0X5,5 | 1 | 32311090237 | Shop at ECS Tuning | |||||
| 26 | Self-locking hex nut | M6 | 1 | 32311092296 | $0.17 | Shop at ECS Tuning | ||||
| 27 | Retainer spring | 1 | 32311161645 | $6.70 | Shop at ECS Tuning | |||||
| 28 | Trim panel upper part | 1 | 12/1994 | 03/1999 | 32311161654 | $90.32 | Shop at ECS Tuning | |||
| 29 | Lower trim panel | 1 | 12/1994 | 03/1999 | 32311092263 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 12/1994 | 03/1999 | 32311092255 | Shop at ECS Tuning | ||||
| 31 | Clamp | 2 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 735i Manually adjust. steering column?
- This technical diagram illustrates the Manually adjust. steering column within the Steering group for the 7 Series E38 735i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #32311093704).
- Which models use the hardware listed in this Manually adjust. steering column?
- The hardware and components featured in the Manually adjust. steering column are specific to the 7 Series E38 735i produced during 1998. These technical specifications ensure that parts like the Supporting bracket (32311093704) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Manually adjust. steering column assembly?
- Each item in the Manually adjust. steering column corresponds to the numbered list below the illustration. For the 7 Series E38 735i, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 32311093704 for the Steering section.
